Overview - Window Guides And Window Shaft Strips

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

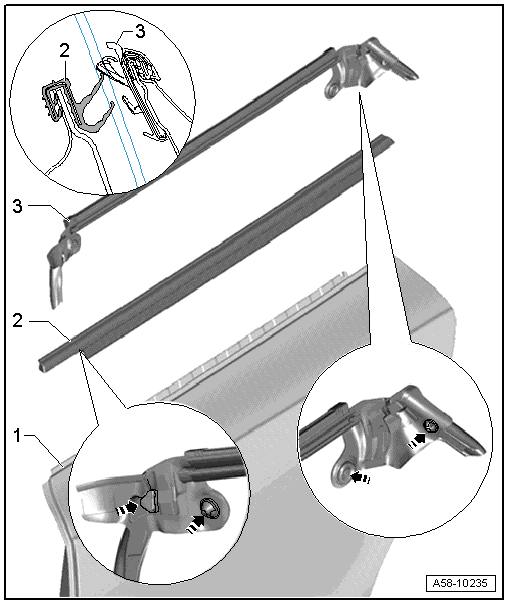

Fig 1: Overview Of Window Guides And Window Shaft Strips

Courtesy of AUDI OF AMERICA, LLC

Door
Outer Window Shaft Strip
- Removing. Refer to WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
Inner Window Shaft Strip
NOTE:
Vehicles with tinted glass have a different version
- Removing
  -- Door trim removed

  -- Unclip the window shaft strip first near the door C-pillar 3x, and 1x near the B-pillar.

  -- Remove the window shaft strip upward from the door flange
