Door Inner Cover, Removing And Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The graphic shows the cover for a vehicle with close assist and locks that have to be released before removing.

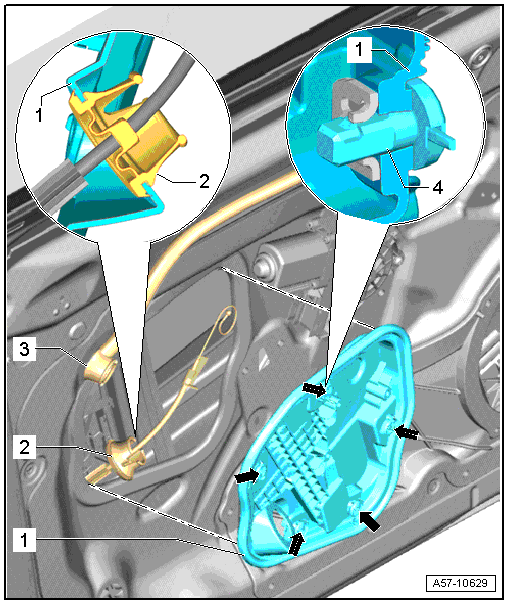

Fig 1: Identifying Door Inner Cover

Courtesy of AUDI OF AMERICA, LLC

Cover
-- Remove the door trim panel. .

Vehicle without Close Assist

-- Remove the electric wires from the clamps -5-.

-- When removing the cover, always start at the top.

Vehicle with Closing Aid

-- Disconnect the voltage supply to the closing assist motor

-- Open the releases (quantity: 5) turning them to the left and remove the cover from the inner door panel.
Grommet with Cable
CAUTION:
Do not bend the cables when installing them.
- When installing, it must fit correctly -arrows-.
Release
- Quantity: 5
  -- Turn the cover to the left to unlock it.

  -- Must click into the place when being installed.
Inside Door Release Mechanism Release
