Closing Assist Motor, Removing And Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

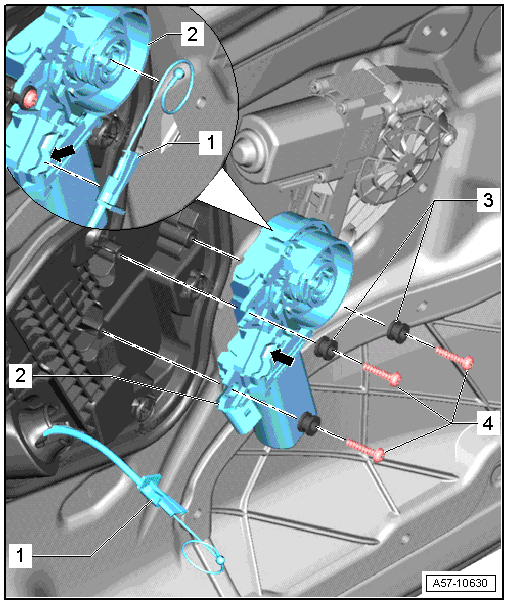

Fig 1: Exploded View Of Door Handle And Door Lock, Closing Assist Motor

Courtesy of AUDI OF AMERICA, LLC

Release Cable
Driver Door Closing Assist Motor -V302-
- Removing
  -- Remove the door trim panel. .

  -- Disconnect the connector from the motor.

  -- Remove the bolts from the motor.

  -- Guide the release cable out of the cable winder.
- Installation
  -- When installing, first insert the cable end into the cable winder.

  -- Place the cable 360° inside the groove in the cable winder.

  -- Install the cable -arrows- into the motor.

  -- Tighten the motor.
Rubber Bushing
- No replacement part
Screw
