Comfort System Central Control Module -J393-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

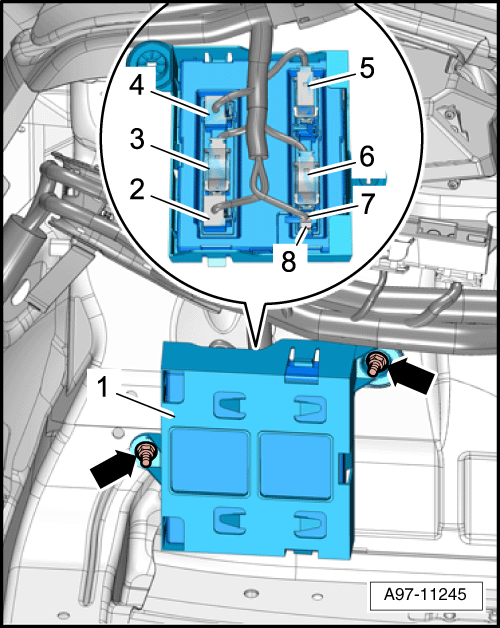

Fig 1: Locating Nuts And Frame

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right luggage compartment side trim panel. Refer to Luggage Compartment Trim Panels .

-- Remove the nuts -arrows- and turn the frame -1- with the central control module.

-- Disconnect the connectors -2 and 4-.

-- Pull the retainer -7- carefully and disconnect the antenna connector -8-.

-- Disconnect the connectors -3, 5 and 6-.

-- To disconnect the connector, press the retainer -1-, turn the bracket in direction of -arrow- and disconnect the connector.

Fig 2: Identifying Catch And Retainer

Courtesy of AUDI OF AMERICA, LLC

-- Release the mounting tabs -A arrows- and remove the Comfort System Central Control Module -J393- -item 1- from the frame -2- -arrow B-
