Mass Airflow Sensor -G70-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

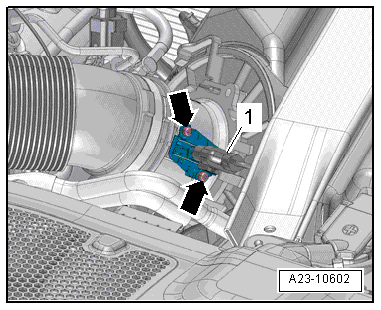

Fig 1: Connector And Remove The Air Guide Pipe

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Open the clamps -arrows- and remove the air guide pipe -1-.

Fig 2: Air Guide Pipe & Clamps

Courtesy of AUDI OF AMERICA, LLC

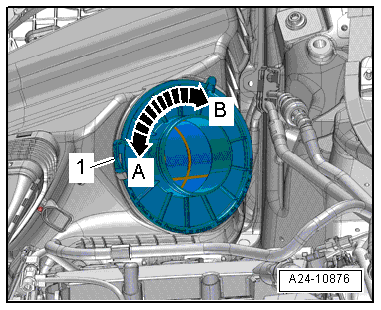

-- Unlock the retainer -1-, turn the cover on the air filter housing with the Mass Airflow Sensor -G70- counterclockwise -arrow A- and remove it.

-- Open the retainer and disconnect the Mass Airflow Sensor -G70- from the cover.

Fig 3: Retainer & Air Filter Housing With The Mass Airflow Sensor

Courtesy of AUDI OF AMERICA, LLC
