Oil Pan Lower Section, Removing And Installing: Installing

WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Cleaning Sealing Surfaces

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of contaminating lubricating system and bearing.

Cover open parts of engine.

WARNING:

Danger of eye injury.

Wear protective eyewear.

-- Remove any sealant residue on the oil pan lower -1- and upper sections using a rotating plastic brush.

-- Clean any oil or grease off the sealing surfaces.

NOTE:

Note the expiration date of the sealing compound.

Fig 2: Cut Tube Nozzle At Front Marking (Nozzle Diameter Approx. 1 Mm)

Courtesy of AUDI OF AMERICA, LLC

-- Cut the tube nozzle at the front marking (nozzle diameter: about 2 mm).

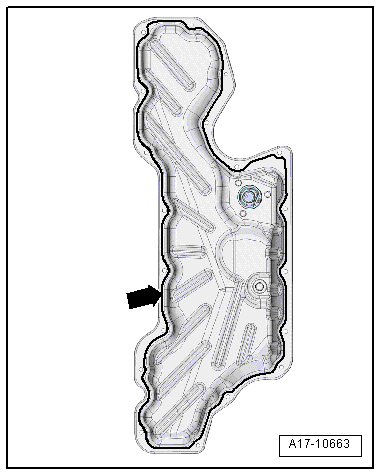

Fig 3: Applying Sealant Bead

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

The lubrication system could be plugged with excess sealant.

Do not apply sealant bead thicker than indicated.

-- Apply a sealant bead -arrow- to the clean sealing surface on the lower part of the oil pan as shown in illustration.

Thickness of sealant bead: 2.5 mm.

NOTE: Install the lower section of the oil pan within five minutes of applying the sealant.

-- Position the lower section of the oil pan and tighten the bolts, refer to Figure.

Installation is performed in reverse order of removal, while noting the following:

-- Install the stabilizer bar, refer to Subframe .

-- Fill the engine oil and check the oil level, refer to appropriate service information
