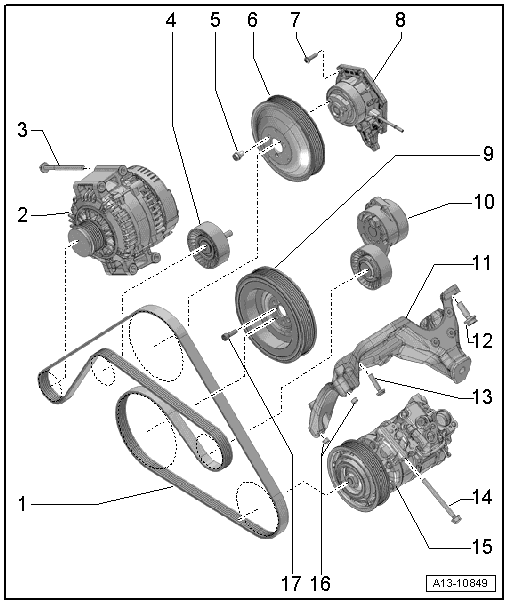

Overview - Accessory Ribbed Belt, Ribbed Belt Drive
WARNING: This page is about a different car, the 2015 Audi A7 Quattro, 2014 Audi A7 Quattro, 2013 Audi A7, and 2012 Audi A7. However, it is still accessible from the selected car via links, so may be relevant.
- Ribbed Belt
- Check for wear
- Before removing, mark direction of rotation using chalk or felt-tip marker
- Removing and installing, refer to RIBBED BELT, REMOVING AND INSTALLING, ACCESSORY RIBBED BELT .
- Do not kink
- When installing, make sure it is seated correctly on the ribbed belt pulleys
- Generator
- Removing and installing, refer to REMOVAL AND INSTALLATION .
- Bolt
- Tightening specification, refer to SPECIFICATIONS .
- Idler Roller
- 40 Nm
- For the ribbed belt
- Bolt
- Tightening specification -item 2- OVERVIEW - COOLANT PUMP/THERMOSTAT => List Item:Bolt .
- Ribbed Belt Pulley
- For the coolant pump
- Removing and installing, refer to COOLANT PUMP, REMOVING AND INSTALLING .
- Bolt
- Tightening specification -item 1- OVERVIEW - COOLANT PUMP/THERMOSTAT => List Item:Bolt .
- Coolant Pump
- Removing and installing, refer to COOLANT PUMP, REMOVING AND INSTALLING .
- Vibration Damper
- With ribbed belt pulley
- Installation only possible in one position.
- Removing and installing, refer to VIBRATION DAMPER, REMOVING AND INSTALLING .
- Tensioner
- 40 Nm
- For the ribbed belt
- Removing and installing, refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING, ACCESSORY RIBBED BELT .
- Left Engine Support
- With A/C compressor bracket
- Bolt
- Tightening specification -item 4- OVERVIEW - SUBFRAME MOUNT => List Item:Bolt .
- Bolt
- Tightening specification -item 5- OVERVIEW - SUBFRAME MOUNT => List Item:Bolt .
- Bolt
- Tightening specifications, refer to A/C COMPRESSOR .
- A/C Compressor
- Do not unfasten/separate refrigerant lines
- Removing and Installing, refer to A/C COMPRESSOR .
- Alignment Sleeves
- Bolt
- 20 Nm +90°
- Replacing
-- Tighten the bolts -arrows- diagonally in stages to 9 Nm.
