Ribbed Belt Tensioner, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front noise insulation, refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Remove the front right wheel spoiler, refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING, AUDI A7/S7 or FRONT WHEEL SPOILER, REMOVING AND INSTALLING, AUDI RS7 .

Audi RS6/RS7:

-- Remove the front lower coolant pipe, refer to LOWER FRONT COOLANT LINES, REMOVING AND INSTALLING .

Continuation for All Vehicles:

Fig 1: Ribbed Belt Tension, Pivot Damper Direction Of -Arrow-

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damage due to reversed running direction on a used ribbed belt.

Before removing ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.

-- Swivel the tensioner in direction of -arrow- to release the tension on the ribbed belt.

-- Remove the ribbed belt from the generator and secure the tensioner with Locking Pin T10060A.

-- Remove the bolts -1 and 2-.

-- Remove the ribbed belt tensioning damper from the oil pan upper section.

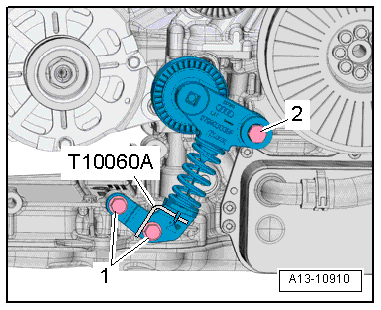

Fig 2: Remove The Bolts -1 And 2-

Courtesy of AUDI OF AMERICA, LLC
