Electrical Component Locations Overview: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The air lines leading to the air springs/air spring shock absorbers are tied inside the wiring harness.

Air lines, servicing, refer to AIR LINE, SERVICING .

Connecting piece, replacing, refer to CONNECTING PIECE, REPLACING .

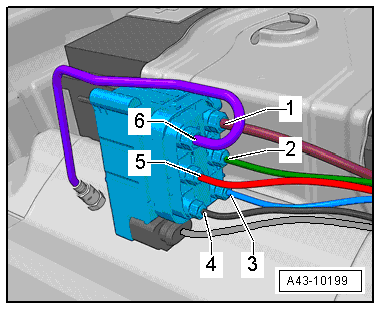

Fig 1: Self-Leveling Suspension Electrical Component Locations

Courtesy of AUDI OF AMERICA, LLC

Left Front Air Spring Shock Absorber
"Red" Air Line
- From the solenoid valve block to the left front air shock absorber
- Front air line routing, refer to Fig 4
"Green" Air Line
- From the solenoid valve block to the right front air spring shock absorber
- Front air line routing, refer to Fig 4
Right Front Air Spring Shock Absorber
"Blue" Air Line
- From solenoid valve block to rear right air spring
- Left rear air line routing, refer to Fig 5
- Right rear air line routing, refer to Air Line Routing to the Right Rear Air Spring
Rear Right Air Spring
Air Line "Brown"
- From air supply unit to solenoid valve block
- Air line, routing to solenoid valve block, refer to Fig 3
Solenoid Valve Block
- Line arrangement on solenoid valve block, refer to Fig 2
Pressure Reservoir
"Purple" Air Line
- From solenoid valve block to pressure reservoir
- Air line routing, refer to Figure
Air Supply Unit
Air Intake Line with Filter and Muffler
- Removing and installing, refer to INTAKE LINE WITH FILTER, REMOVING AND INSTALLING .
"Black" Air Line
- From solenoid valve block to rear left air spring
- Rear air line routing, refer to Fig 5
Rear Left Air Spring
