Overview - Adaptive Cruise Control
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

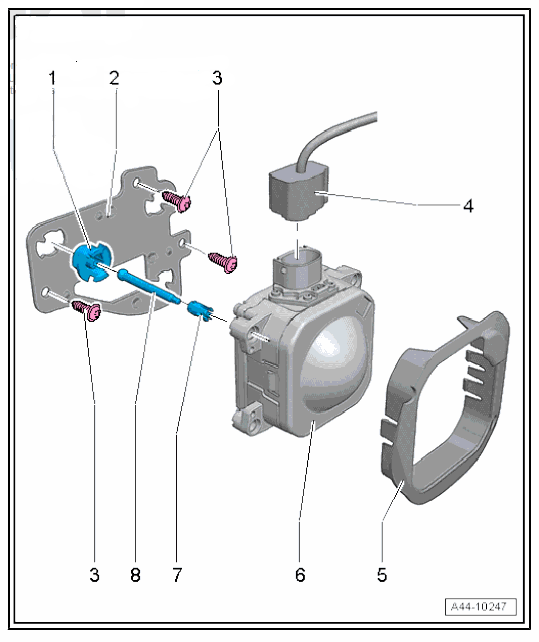

- Quick Release Fastener
- Quantity: 3
- Replace after removal
- Retaining Plate
- Removing and installing. Refer to DISTANCE REGULATION CONTROL MODULE - J428- / DISTANCE REGULATION CONTROL MODULE 2 - J850- RETAINING PLATE, REMOVING AND INSTALLING
- Bolt
- 2.5 Nm
- Connector
- Check for damage, contact corrosion and water ingress, and service if necessary. Refer to WIRING HARNESS AND CONNECTOR REPAIRS .
- Cover
- Distance Regulation Control Module
- Right: Distance Regulation Control Module - J428-
- Left: Distance Regulation Control Module 2 - J850-
- Removing and installing. Refer to DISTANCE REGULATION CONTROL MODULE - J428- / DISTANCE REGULATION CONTROL MODULE 2 - J850-, REMOVING AND INSTALLING .
- Clip
- Must always be replaced if the stud bolt -item 8- was removed.
- Replacing. Refer to DISTANCE REGULATION CONTROL MODULE - J428- / DISTANCE REGULATION CONTROL MODULE 2 - J850- CLIP, REPLACING
- Stud Bolt
- Note the adjustment dimension. Refer to Figure.
- The dimension -a- = 43.3 mm.
