Overview - Locking Mechanism
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

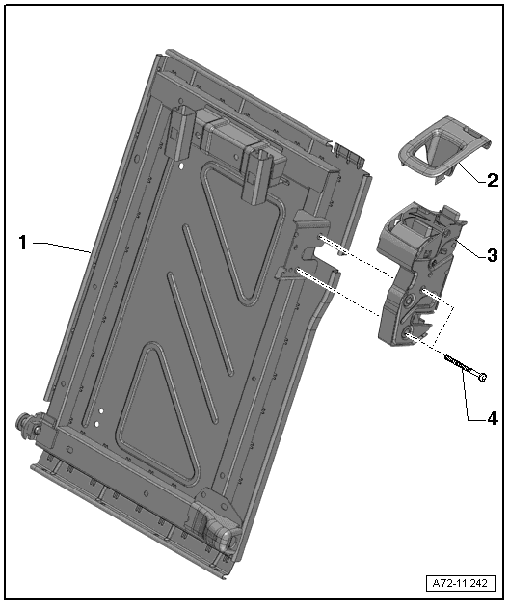

The overview shows the locking mechanism on the left 1/3 section of the rear seat backrest. The locking mechanism on the right 2/3 section of the rear seat backrest is identical.
- Rear Seat Backrest Frame
- Trim
- For locking
- Removing and installing. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Locking Mechanism
- For the rear seat backrest
- Removing and installing. Refer to REAR SEAT BACKREST LOCKING MECHANISM, REMOVING AND INSTALLING .
- Bolt
- 25 Nm
- Quantity: 2
