Overview - Center Armrest, Backrest With Pass-Through
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

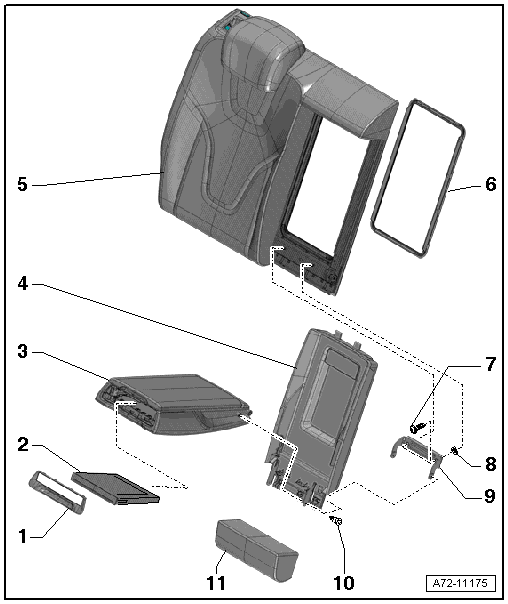

The 2-seat rear seat backrest is shown in the illustration.
- Trim
- For the cupholder
- Removing and installing. Refer to CUPHOLDER, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Cupholder
- Removing and installing. Refer to CUPHOLDER, REMOVING AND INSTALLING .
- Install and press on it until it audibly latches
- Rear Center Armrest
- Removing and installing. Refer to CENTER ARMREST, REMOVING AND INSTALLING .
- Door
- For the pass-through opening
- Removing and installing. Refer to PASS-THROUGH COVER, REMOVING AND INSTALLING .
- Right 2/3 Rear Seat Backrest
- With pass-through opening
- Equipment levels
- Cover Frame
- For the pass-through opening
- Clipped into the rear seat backrest
- Removing and installing. Refer to PASS-THROUGH COVER FRAME, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Bolt
- 8 Nm
- Quantity: 2
- Secured to the bracket with a permanent lock washer -8-
- Lock Washer
- For bolt -item 7-
- Quantity: 2
- Bracket
- For the center armrest
- Cannot be replaced separately
- Bolt
- 11 Nm
- Quantity: 4
- Self-locking
- Replace
- Threaded holes for bolts must be cleaned, for example, with a thread tap
- Lower Center Cushion
- Removing and installing. Refer to CENTER CUSHION, REMOVING AND INSTALLING, BACKREST WITH PASS-THROUGH .
- Engage the cushion to the pass-through door and press on it until it clicks into place
