Seat Side Trim On The Tunnel Side, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front seat. Refer to Removing .

-- Fasten the front seat on the Engine/Transmission Holder - Seat Repair Fixture VAS 6136. Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the expanding rivets -3- and -4-.

Fig 1: Removing Expanding Rivets -3- And -4-

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the tunnel-side trim -2- from the backrest hinge and remove it.

NOTE:

Make sure the tab -1- is not damaged when removing the trim.

Multi-Contour Seat:

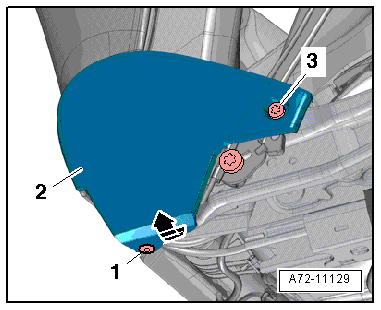

Fig 2: Expanding Rivet, Bolt & Tunnel Side Trim

Courtesy of AUDI OF AMERICA, LLC

-- Remove the expanding rivet -1-.

-- Remove the bolt -3-.

-- Detach tunnel side trim -2- on the backrest hinge trim -arrow- and remove.
