Seat Rail Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

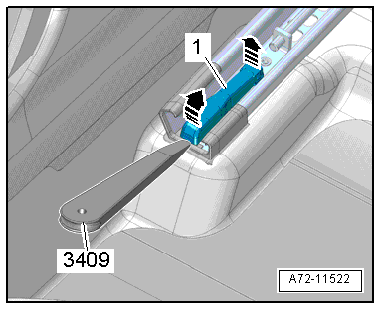

Fig 1: Front Seat, Removing And Installing
GWWA72-11522Courtesy of AUDI OF AMERICA, LLC

-- Pry the spindle cover -1- off of the seat rail cover and the seat rail bolt using the Trim Removal Wedge 3409 -arrows-.

-- Open the tabs -3-, -4-, -5- on the seat rail carefully with a screwdriver and remove the cover -1- from the seat rail -2-.

Fig 2: Unclipping Retaining Tabs On Cover From Seat Rail And Removing Cover
GWWA72-10339Courtesy of AUDI OF AMERICA, LLC
