Seat Cushion Blower Fan, Removing And Installing, Standard Seat/Sport Seat/Super Sport Seat: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
-- Remove the front seat. Refer to Removing .
-- Fasten the front seat on the Engine/Transmission Holder - Seat Repair Fixture VAS 6136. Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Remove the backrest. Refer to Removing .
-- Remove the upholstery from the lower seat frame. Refer to LOWER SEAT FRAME COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD SEAT .

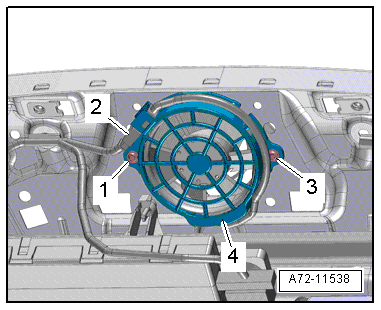

-- Disconnect the connector -2- from the seat cushion fan and free up the electric wire.
-- Remove the bolts -1- and -3-.
-- Turn the cover grid -4- at little counter-clockwise and remove the fan.
