Overview - Seat Pan, Seat Depth Adjuster
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
Sport Seat/Super Sport Seat
- Nut
- Quantity: 4
- Replace
- Sport Seat
- With a seat depth adjuster
- Trim
- For seat depth adjustment
- Removing and installing. Refer to SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING, SPORT SEAT/SUPER SPORT SEAT .
- Press on until it engages audibly
- Seat Depth Adjuster
- Removing and installing. Refer to SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING, SPORT SEAT/SUPER SPORT SEAT .
- Bushing
- Bolt
- 4 Nm
- Replace
- Use locking fluid when installing the bolt. For the correct locking fluid .
- Bolts
- 4 Nm
- Replace
- Use locking fluid when installing the bolt. For the correct locking fluid .
- Bolt
- 4 Nm
- Replace
- Use locking fluid when installing the bolt. For the correct locking fluid .
- Bushing

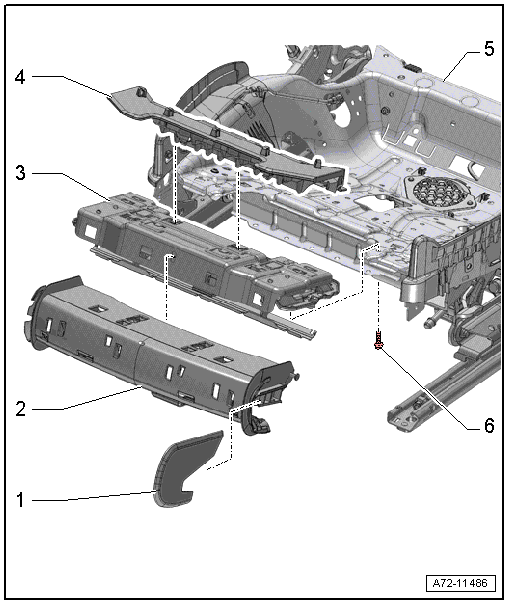

Multicontour Seat
- Trim
- For seat depth adjustment
- Quantity: 2
- Press on until it engages audibly
- Support
- For Driver Seat Depth Adjustment Motor -V256- / Front Passenger Seat Depth Adjustment Motor -V257-
- Removing and installing. Refer to SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING, MULTICONTOUR SEAT .
- Driver Seat Depth Adjustment Motor -V256-
- Front passenger side: Front Passenger Seat Depth Adjustment Motor -V257-
- Removing and installing. Refer to SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING, MULTICONTOUR SEAT .
- Install cable ties at the same locations when installing.
- Cover
- For seat depth adjustment
- Removing and installing. Refer to SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING, MULTICONTOUR SEAT .
- Clipped to the seat cover and seat cushion
- Engaged to the seat depth adjuster and press on it until it clicks into place
- Multicontour Seat
- Bolt
- 3.5 Nm
- Quantity: 4
