Overview - Front Backrest, Rear Seat Entertainment Mount/Bracket
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
Version 1
- Bolt
- 3.8 Nm
- Quantity: 2
- Internally Threaded Pop Rivet
- Quantity: 2
- For riveting to backrest frame, refer to Internally Threaded Pop Rivet, Riveting .
- Contact connector
- For rear seat entertainment
- Clip to the bracket
- Backrest Frame
- Bracket
- For rear seat entertainment
- Removing and installing. Refer to REAR SEAT ENTERTAINMENT MOUNT/BRACKET, REMOVING AND INSTALLING, VERSION 1 .
- Hook into the backrest frame
- Mount
- For rear seat entertainment
- Cannot be removed without damaging it
- Removing and installing. Refer to REAR SEAT ENTERTAINMENT MOUNT/BRACKET, REMOVING AND INSTALLING, VERSION 1 .
- Press on until it engages audibly

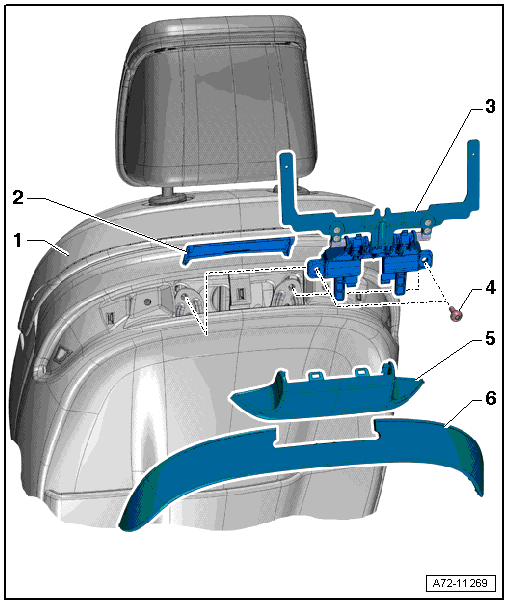

Version 2
- Front Seat
- Front Cover
- Removing and installing. Refer to REAR SEAT ENTERTAINMENT MOUNT/BRACKET, REMOVING AND INSTALLING, VERSION 2 .
- Press until it engages completely
- Mount
- For rear seat entertainment
- Removing and installing. Refer to REAR SEAT ENTERTAINMENT MOUNT/BRACKET, REMOVING AND INSTALLING, VERSION 2 .
- Hook into bracket and bolt down
- Bolt
- 6.5 Nm
- Quantity: 2
- Rear Cover
- Removing and installing. Refer to REAR SEAT ENTERTAINMENT MOUNT/BRACKET, REMOVING AND INSTALLING, VERSION 2 .
- Press until it engages completely
- Trim
- For backrest cover
- Removing and installing. Refer to REAR SEAT ENTERTAINMENT MOUNT/BRACKET, REMOVING AND INSTALLING, VERSION 2 .
- Press until it engages completely
