Rear Seat Entertainment Mount/Bracket, Removing And Installing, Version 2: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

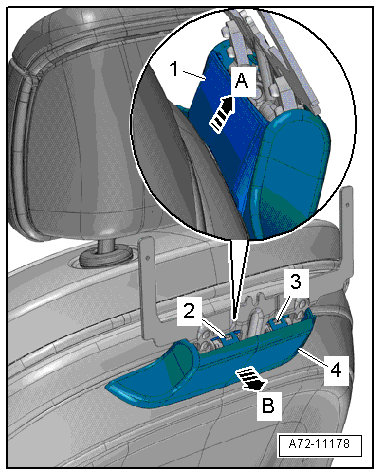

Fig 1: Multimedia Display Unit 1

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Multimedia Display Unit 1 -Y22- / 2 Multimedia Display Unit -Y23-. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .

-- Unclip the front cover -1- for the mount upward using the Trim Removal Wedge 3409 -arrow A- and remove it.

-- Release the retainers -2 and 3-, unclip the rear cover -4- for the mount using the Trim Removal Wedge 3409 -arrow B- and remove it.

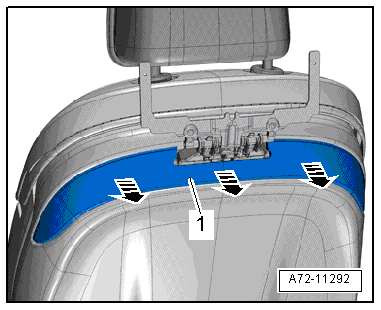

-- Unclip the trim -1- using the Trim Removal Wedge 3409 -arrows- and remove.

Fig 2: Release Retainers -2 And 3-, Unclip Rear Cover -4-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 2-.

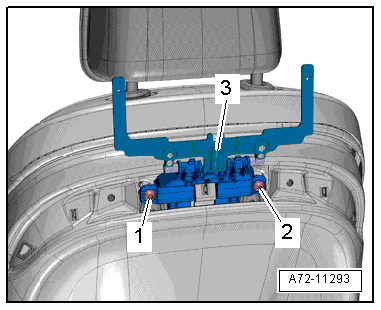

Fig 3: Remove The Bolts -1 And 2 Detach Mount -3-

Courtesy of AUDI OF AMERICA, LLC

-- Detach mount -3- on the bracket and remove.
