Backrest Cover, Removing And Installing, MULTICONTOUR Seat With Optional Equipment: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Move Front Seat Forward/Up

Courtesy of AUDI OF AMERICA, LLC

-- Move the front seat all the way forward/up.

-- Vehicles with rear seat entertainment: Remove the Rear Seat Entertainment mount. Refer to REAR SEAT ENTERTAINMENT MOUNT/BRACKET, REMOVING AND INSTALLING, VERSION 1 and REAR SEAT ENTERTAINMENT MOUNT/BRACKET, REMOVING AND INSTALLING, VERSION 2 .

-- Unclip the trim -1- using the Trim Removal Wedge 3409 -arrows- and remove.

-- Detach left and right rubber strap -1- at the bottom of the seat pan.

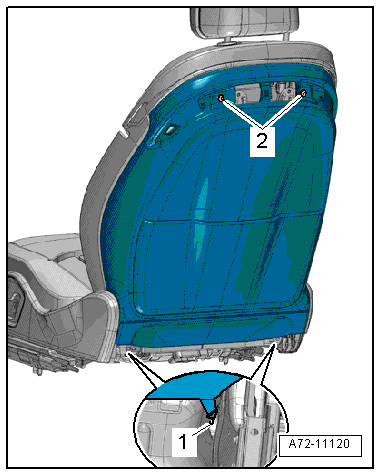

Fig 2: Unclip The Trim, Remove Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2-.

-- Pull off backrest cover in upward direction.

Backrest Cover Bracket

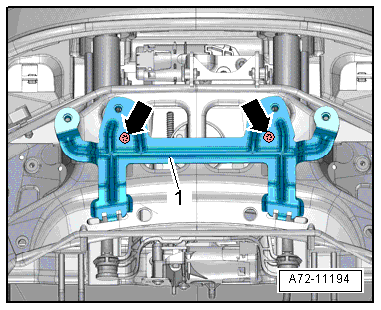

Fig 3: Remove Bolts And Backrest Cover Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -arrows- and backrest cover bracket -1-.
