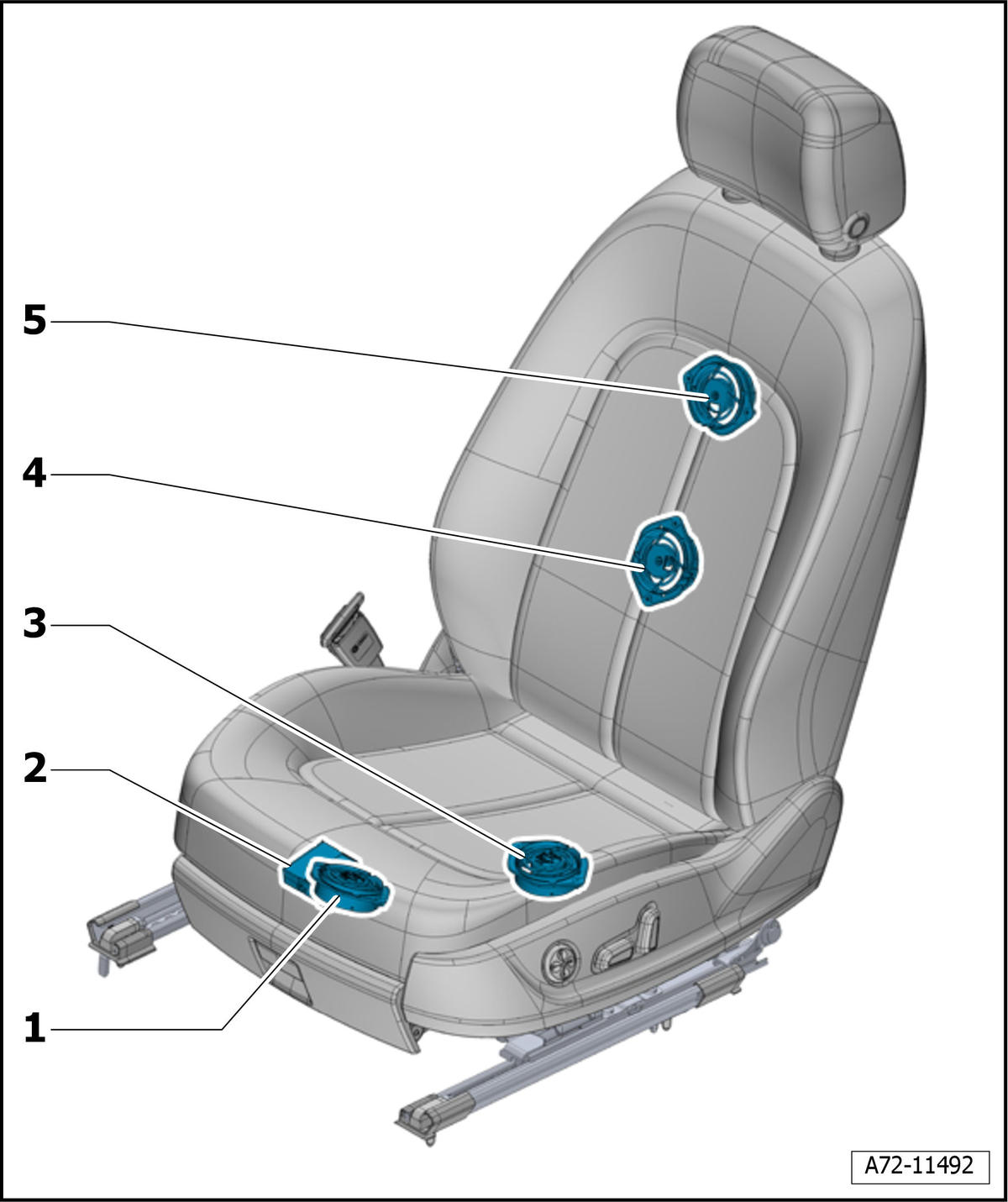

Fig 1: Seat Ventilation Fans Component Location

Courtesy of AUDI OF AMERICA, LLC

Driver Seat Cushion Blower Fan -V390-
- Front passenger side: Front Passenger Seat Cushion Blower Fan -V391-
- Removing and installing. Refer to SEAT CUSHION BLOWER FAN, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
Left Front Seat Ventilation Control Module -J800- (integrated in the seat heating)
- Front passenger side: Driver side: Left Front Seat Ventilation Control Module -J799- (integrated in the seat heating function)
- Removing and installing. Refer to SEAT VENTILATION CONTROL MODULE (INTEGRATED IN SEAT HEATING), REMOVING AND INSTALLING .
Driver Seat Cushion Blower Fan 2 -V419-
- Front passenger side: Front Passenger Seat Cushion Blower Fan 2 -V420-
- Removing and installing. Refer to SEAT CUSHION BLOWER FAN, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
Driver Seat Backrest Blower Fan 2 -V417-
- Front passenger side: Front Passenger Seat Backrest Blower Fan 2 -V418-
- Glued to the backrest cushion
- Removing and installing. Refer to BACKREST FAN, REMOVING AND INSTALLING .
Driver Seat Backrest Blower Fan -V388-
- Front passenger side: Front Passenger Seat Backrest Blower Fan -V389-
- Glued to the backrest cushion
- Removing and installing. Refer to BACKREST FAN, REMOVING AND INSTALLING .
