High-Mounted Brake Lamp Bulb

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Trim Removal Wedge 3409
Cleaning solution D 009 401 04

Removal

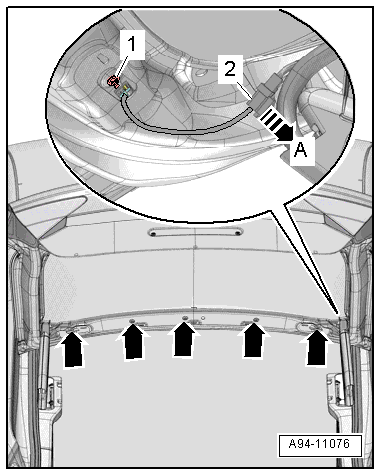

Fig 1: Identifying High-Mounted Brake Lamp Bulb

GWWA94-11076

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear lid trim panel to the side. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

-- Release the retainer in -direction of arrow A- and disconnect the connector -2-.

-- Remove the nut -1- -arrows-.

-- Pry the bolt -3- on the outer side out of the clips nuts -4- using the 3409.

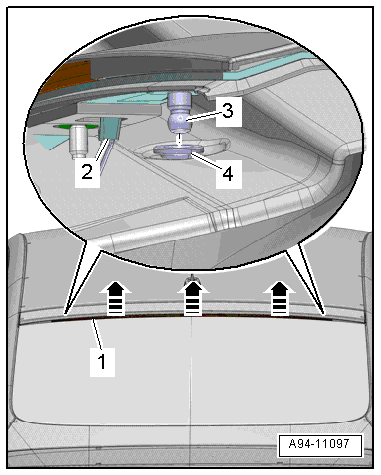

Fig 2: Prying Bolt -3- On Outer Side Out Of Clips Nuts -4- Using 3409

GWWA94-11097

Courtesy of AUDI OF AMERICA, LLC

-- Remove the high-mounted brake lamp -1- from the rear lid -arrows- and guide the electric wire -2- through the opening in the body.

Installation

Fig 3: Identifying High-Mounted Brake Lamp -1-

GWWA94-11094

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

NOTE:

Entire high-mounted brake light must be replaced in the event of faulty LEDs.

-- Check the seal -2- between the high-mounted brake lamp -1- and the rear lid for damage.

-- Install the high-mounted brake lamp into the rear lid.

Fig 4: Tightening Specification and Sequence Of High-Mounted Brake Lamp Bulb

GWWA94-11093

Courtesy of AUDI OF AMERICA, LLC

-- Tighten bolts, refer to TIGHTENING SPECIFICATION AND SEQUENCE: HIGH-MOUNTED BRAKE LAMP BULB .

-- Connect the connectors.

-- Push the rubber lip under the rear window using the 3409.

-- Install the rear lid trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .
