Rear Parking Aid
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

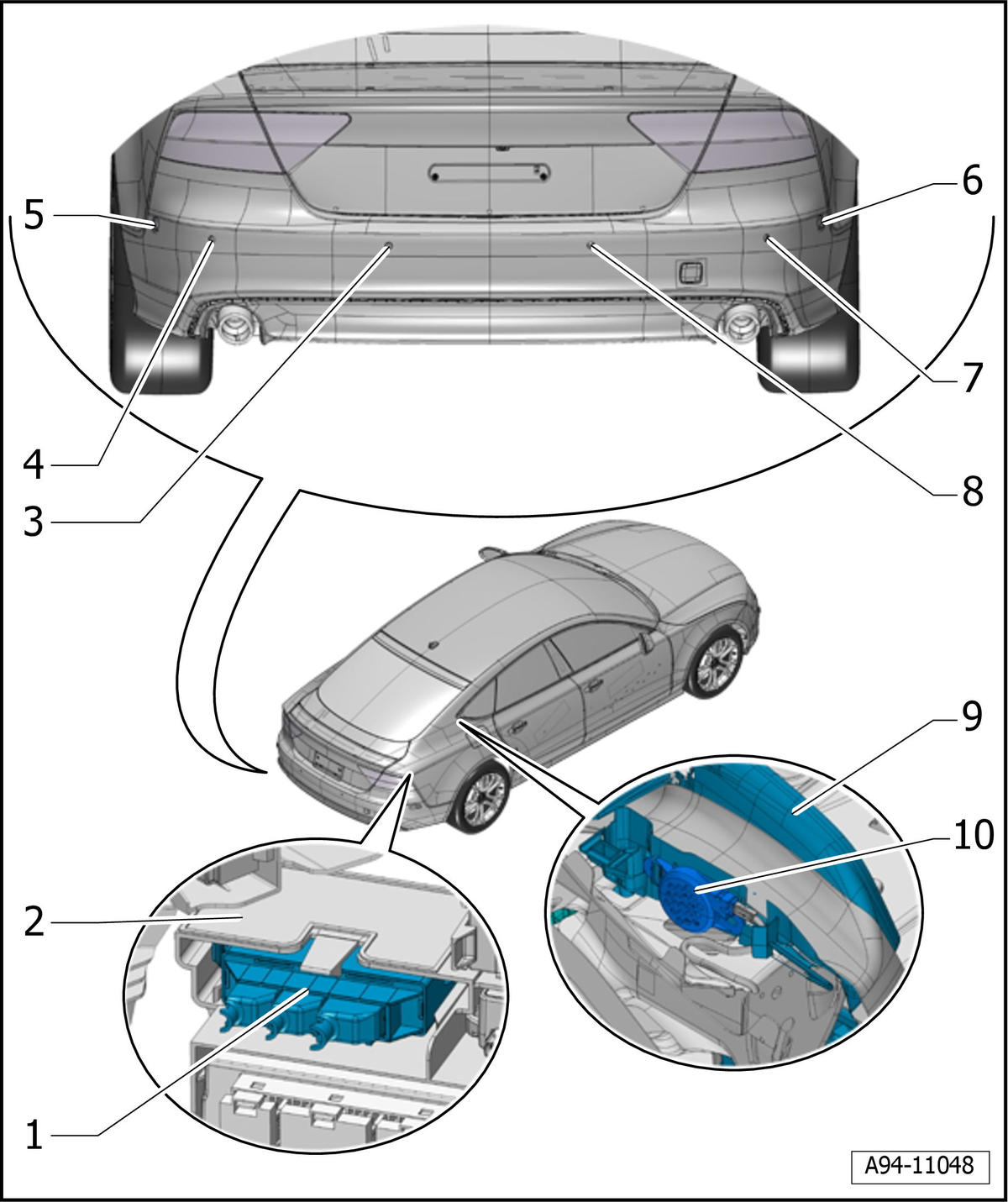

- Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
- Removing and installing, refer to PARKING AID AND PARALLEL PARKING ASSISTANCE CONTROL MODULES -J446- / -J791- .
- Lower Frame
- For the control modules.
- Left Rear Center Parking Aid Sensor -G204-
- Removing and installing, refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206- .
- Left Rear Parking Aid Sensor -G203-
- Removing and installing, refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206- .
- Left Rear Parallel Parking Assistance Sensor -G716-
- Removing and installing, refer to REAR PARALLEL PARKING ASSISTANCE SENSORS -G716- / -G717- .
- Right Rear Parallel Parking Assistance Sensor -G717-
- Removing and installing, refer to REAR PARALLEL PARKING ASSISTANCE SENSORS -G716- / -G717- .
- Right Rear Parking Aid Sensor -G206-
- Removing and installing, refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206- .
- Right Rear Center Parking Aid Sensor -G205-
- Removing and installing, refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206- .
- Rear Seat Belt Guide
- With mount for the rear parking aid warning buzzer -H15-.
- Rear Parking Aid Warning Buzzer -H15-
- Removing and installing, refer to REAR PARKING AID WARNING BUZZER -H15- .
