Front Parking Aid
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

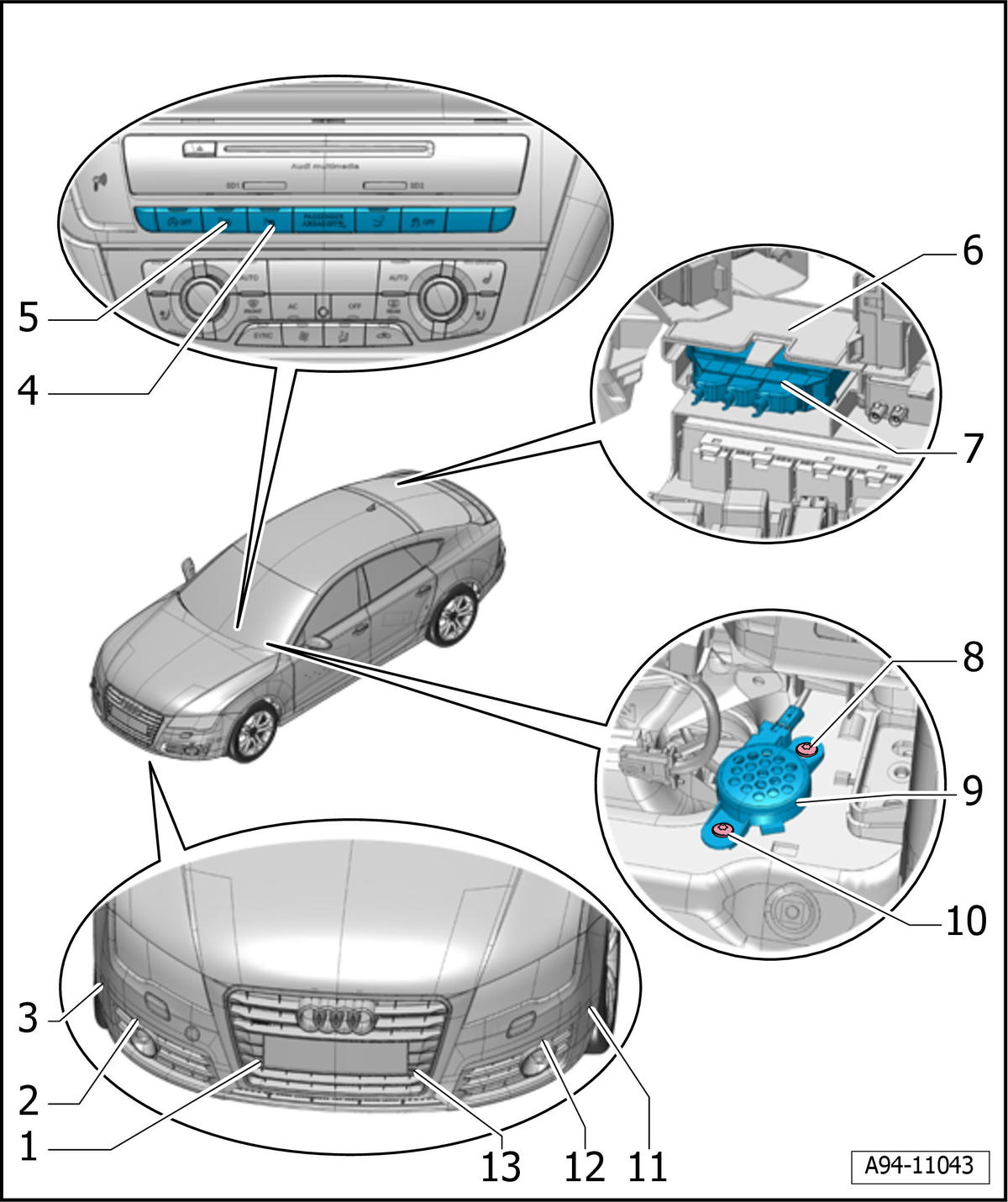

- Right Front Center Parking Aid Sensor -G253-
- Removing and installing, refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255- .
- Right Front Parking Aid Sensor -G252-
- Removing and installing, refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255- .
- Right Front Parallel Parking Assistance Sensor (vehicle - right side) -G569-
- Only on vehicles with parallel parking assistance.
- Removing and installing, refer to LEFT AND RIGHT FRONT PARALLEL PARKING ASSISTANCE SENSORS -G568- / -G569- .
- Parking Aid Button -E266-
- Only with 8-channel parking aid.
- Removing and installing, refer to SWITCH UNIT WITH START/STOP MODE BUTTON, PARKING AID BUTTON, FRONT PASSENGER AIRBAG -DISABLED- INDICATOR LAMP, REAR SPOILER ADJUSTMENT SWITCH AND ASR/ESP BUTTON .
- Parallel Parking Assistance Button -E581-
- Lower Frame
- For the control modules.
- Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
- Removing and installing, refer to PARKING AID AND PARALLEL PARKING ASSISTANCE CONTROL MODULES -J446- / -J791- .
- Expanding Clip
- Front Parking Aid Warning Buzzer -H22-
- Only with 8-channel parking aid.
- Removing and installing, refer to FRONT PARKING AID WARNING BUZZER -H22- (8-CHANNEL PARKING AID) .
- Expanding Clip
- Left Front Parallel Parking Assistance Sensor (vehicle - left side) -G568-
- Only on vehicles with parallel parking assistance.
- Removing and installing, refer to LEFT AND RIGHT FRONT PARALLEL PARKING ASSISTANCE SENSORS -G568- / -G569- .
- Left Front Parking Aid Sensor -G255-
- Removing and installing, refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255- .
- Left Front Center Parking Aid Sensor -G254-
- Removing and installing, refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255- .
