LED Outer Tail Lamps Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
Observe notes on contact corrosion CONTACT CORROSION .

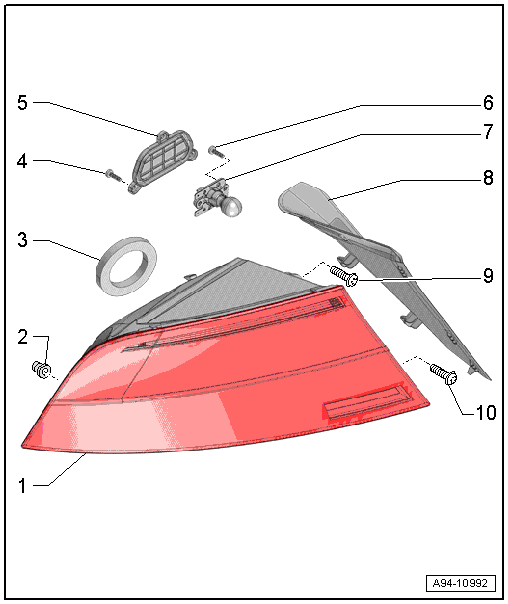

- Outer Tail Lamps
- Removing and installing, refer to OUTER TAIL LAMPS .
- Clip Nut
- Foam Seal
- self-adhesive
- Screw
- 2 Nm
- Quantity 3
- Cover
- Screw
- 2 Nm
- Quantity 2
- Left Back-Up Lamp
- Left back-up lamp -M16-
- Right Back-Up Lamp -M17-
- 12V, 16 W
- Removing and installing, refer to BULB SOCKET .
- Cover
- For the outer tail lamp assembly.
- Screw
- 3.5 Nm
- Screw
- 3.5 Nm
