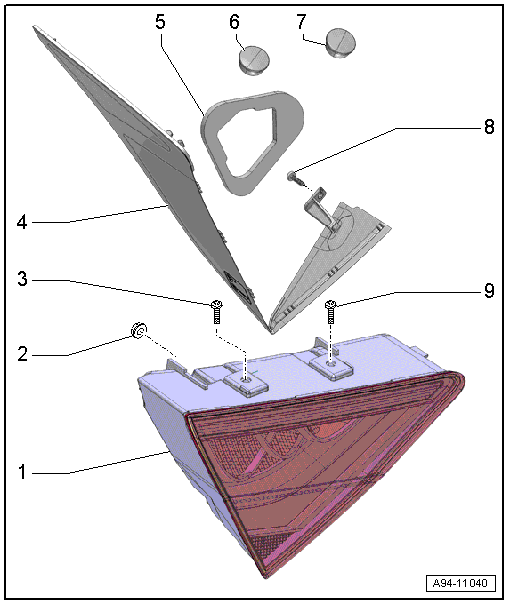

LED Inner Tail Lamp Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
Observe notes on contact corrosion CONTACT CORROSION .
- Inner Tail Lamp
- Removing and installing, refer to INNER TAIL LAMPS
- Nut
- 2 Nm
- Screw
- 4 Nm
- Cover
- For the inner tail lamp.
- Removing and installing, refer to INNER TAIL LAMP COVER .
- Gasket
- Replace if damaged
- Cap
- Cap
- Screw
- 2 Nm
- Quantity 3
- Screw
- 4 Nm
