LED Headlamps Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
Observe notes on contact corrosion CONTACT CORROSION .

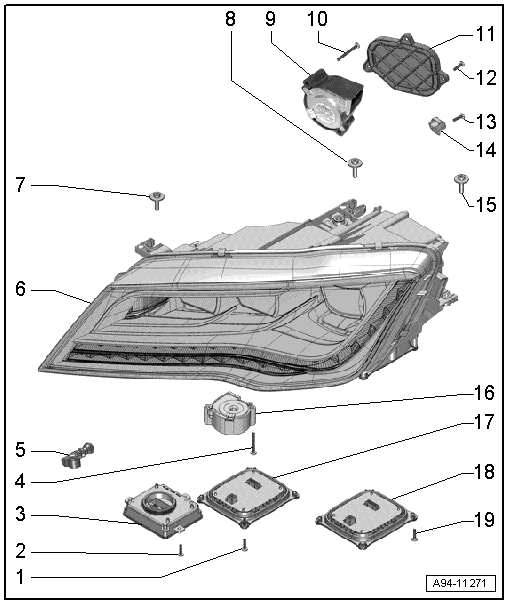

Headlamp Housing, Control Modules
- Screw
- 1.5 Nm
- Quantity 4
- Screw
- 1.5 Nm
- Quantity 3
- Power Output Stage 3 for LED Headlamp
- For daytime running lamp/parking lamp, turn signal
- Left LED headlamp power output module 3 -A33-, right LED headlamp power output module 3 -A29-
- Removing and Installing, refer to RIGHT AND LEFT POWER OUTPUT MODULE 3 -A29- / -A33- .
- Screw
- 1.5 Nm
- Quantity: 2
- Ventilation
- For headlamp housing.
- Headlamp Housing
- Removing and installing, refer to HEADLAMP HOUSING .
- Screw
- 4.5 Nm
- Screw
- 4.5 Nm
- Headlamp Fan 2
- Left headlamp fan 2 -V463-, right headlamp fan 2 -V464-.
- Removing and installing, refer to HEADLAMP FAN 2 -V463- / -V464- .
- Screw
- 2 Nm
- Quantity: 2
- Housing Cover For The Headlamp Fan
- The headlamp housing must be cut open to replace the fan.
- A housing cover can be ordered to seal the assembly opening.
- Removing and installing, refer to HEADLAMP FAN 2 -V463- / -V464- .
- Screw
- 2 Nm
- From the repair kit for the headlamp fan cover.
- Quantity: 3
- Screw
- 2 Nm
- Clip
- For the headlamp cover
- Removing and installing, refer to HEADLAMP HOUSING REPAIR SET, INSTALLING
- Screw
- 6 Nm
- Headlamp Fan
- Left headlamp fan -V407-, right headlamp fan -V408-.
- Removing and installing, refer to HEADLAMP FAN -V407- / -V408- .
- Power Output Stage 2 for LED Headlamp
- For high beam, cornering lamp.
- Left LED headlamp power output module 2 -A32-, right LED headlamp power output module 2 -A28-
- Removing and installing, refer to RIGHT AND LEFT POWER OUTPUT MODULE 2 -A28- / -A32- .
- Power Output Stage 1 For LED Headlamp
- For low beam
- Left LED headlamp power output module 1 -A31-, Right LED headlamp power output module 1 -A27-
- Removing and installing, refer to RIGHT AND LEFT POWER OUTPUT MODULE 1 -A27- / -A31- .
- Screw
- 1.5 Nm
- Quantity: 4
