Part 2 - Headlamp Range Control Positioning Motor Repair Kit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

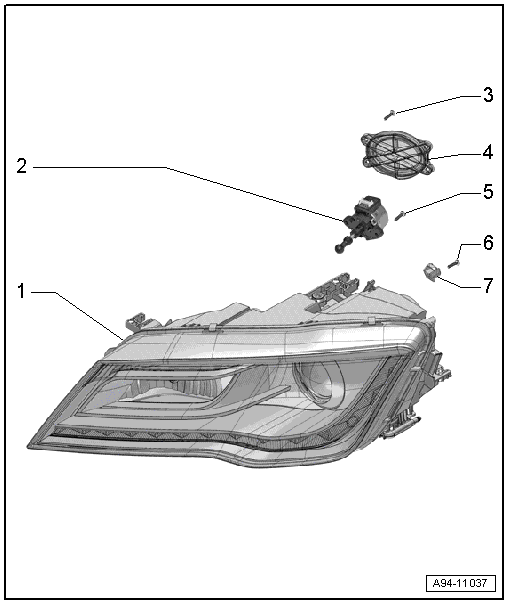

Fig 1: Identifying Part 2 - Headlamp Range Control Positioning Motor Repair Kit

Courtesy of AUDI OF AMERICA, LLC

Headlamp Housing
- Removing and installing, refer to HEADLAMP HOUSING .
Headlamp Range Control Positioning Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing, refer to HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49- .
Screw
- 2 Nm
- From the repair kit for the headlamp range control positioning motor cover.
- Quantity 2
Headlamp Range Control Positioning Motor Housing Cover
- The headlamp housing must be cut open to replace the positioning motor
- A housing cover can be ordered to seal the assembly opening.
- Removing and installing, refer to HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49- .
Screw
- 2 Nm
- Quantity 2
Screw
- 2 Nm
Clip
- For the headlamp cover.
- Removing and installing, refer to HEADLAMP HOUSING REPAIR SET, INSTALLING .
