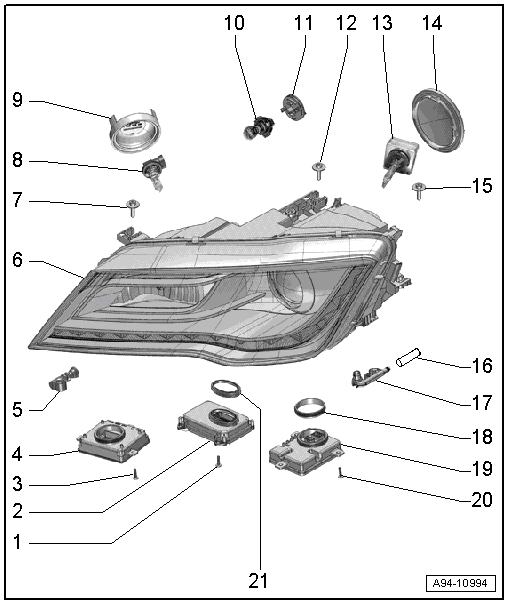

Part 1 - Headlamp Housing, Bulbs, Control Modules
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Screw
- 1.5 Nm
- Quantity 3
- Headlamp Power Output Stages
- Only for vehicles with cornering lamps.
- Left Headlamp Power Output Stage -J667- or Right Headlamp Power Output Stage -J668-
- Removing and installing, refer to HEADLAMP POWER OUTPUT STAGE -J667- / -J668- .
- Screw
- 1.5 Nm
- Quantity 3
- Daytime Running Lamp and Parking Lamp Control Module
- Left daytime running lamp and parking lamp control module -J860-, Right daytime running lamp and parking lamp control module -J861-
- Removing and installing, refer to DAYTIME RUNNING LAMP AND PARKING LAMP CONTROL MODULE .
- Ventilation
- For headlamp housing.
- Headlamp Housing
- Removing and installing, refer to HEADLAMP HOUSING .
- Screw
- 4.5 Nm
- Bulb
Headlamp without dynamic cornering lamp
- Left stationary cornering lamp -M51-, Right stationary cornering lamp -M52-
- This bulb is solely an all weather bulb on a headlamp without a cornering lamp
- 12 V, 35 W (H8)
- Bulb, replacing, refer to STATIC CORNERING LAMP BULB, ALL WEATHER BULB .
Headlamp with a dynamic cornering lamp
- Left stationary cornering lamp -M51-, Right stationary cornering lamp -M52-
- 12 V, 55 W (H7)
- Bulb, replacing, refer to STATIC CORNERING LAMP BULB .
- Housing Cover
- Front Turn Signal Lamp
- Left front turn signal bulb -M5-, Right front turn signal bulb -M7-
- 12V, 24 W
- Bulb, replacing, refer to FRONT TURN SIGNAL LAMP BULBS .
- Housing Cover
- Screw
- 4.5 Nm
- Gas-Discharge Lamp
- With integrated ignition coil
- Left HID headlamp bulb -L13-, Right HID headlamp bulb -L14-
- 42 V, 35 W (D3S)
- Bulb, replacing, refer to HID HEADLAMP BULBS .
- Housing Cover
- For gas discharge lamp.
- Screw
- 6 Nm
- Ventilation Hose
- For headlamp housing.
- Ventilation
- For headlamp housing.
- Gasket
- HID Headlamp Control Module
- Left High-intensity Gas Discharge Lamp Control Module -J343- and Right High-intensity Gas Discharge Lamp Control Module -J344-.
- Removing and installing, refer to HIGH-INTENSITY GAS DISCHARGE LAMP CONTROL MODULE -J343- / -J344- .
- Screw
- 1.5 Nm
- Quantity 3
- Gasket
