Exterior Rearview Mirror Turn Signals

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

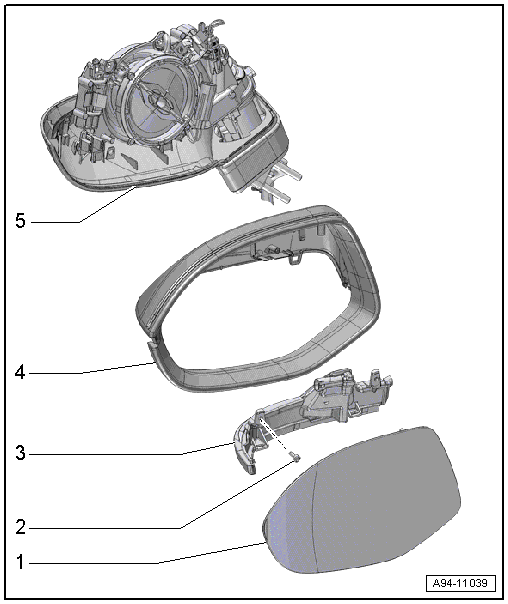

Fig 1: Identifying Exterior Rearview Mirror Turn Signals Components
GWWA94-11039Courtesy of AUDI OF AMERICA, LLC
  1. Mirror Glass
  2. Screw
    • 0.9 Nm
    • Quantity 2
  3. Exterior Rearview Mirror Turn Signal Bulb
    • Driver exterior rearview mirror turn signal bulb -L131-
    • Front passenger exterior rearview mirror turn signal bulb -L132-
    • Removing and installing, refer to EXTERIOR MIRROR TURN SIGNAL LAMPS .
  4. Exterior Rearview Mirror Housing
  5. Mirror Adjusting Unit Mount
