Exterior Door Handle Illumination Overview

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

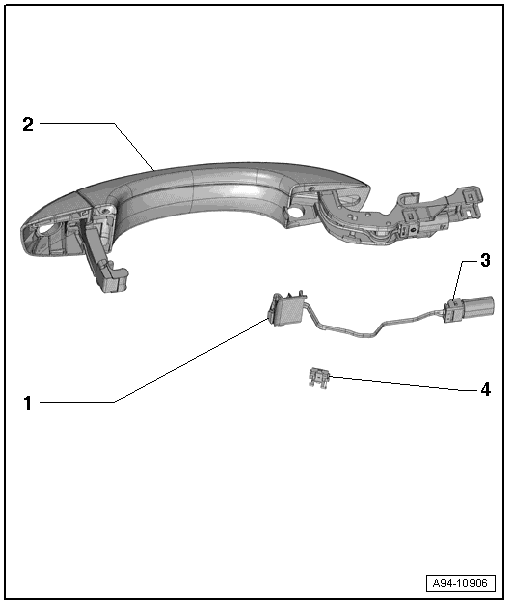

Fig 1: Overview Of Exterior Door Handle Lamps

Courtesy of AUDI OF AMERICA, LLC

Bulb For The Exterior Door Handle Illumination
Front exterior door handle:
- Left front exterior door handle illumination bulb -L162-
- Right front exterior door handle illumination bulb -L163-
- Removing and installing, refer to FRONT EXTERIOR DOOR HANDLE ILLUMINATION BULB .
  Rear exterior door handle:
- Left rear exterior door handle illumination bulb -L168-
- Right rear exterior door handle illumination bulb -L169-
- Removing and installing, refer to REAR EXTERIOR DOOR HANDLE ILLUMINATION BULB .
Outside Door Handle
Electrical Connector
Wiring Guide
