Rear Side Airbag With Igniter, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Follow the additional safety precautions when working with the side airbag. Refer to SIDE AIRBAG ADDITIONAL SAFETY PRECAUTIONS .
- Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING .
-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the side cushion. Refer to SIDE CUSHION, REMOVING AND INSTALLING .
WARNING:
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

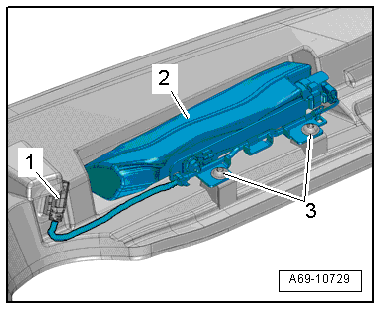

-- Free up the connector -1- from the rear side airbag.
-- Remove the bolts -3-.
-- Remove the rear side airbag -2- from the side cushion.
WARNING:
Set the airbag down so the impact cushion faces upward.
