Front Side Airbag With Igniter, Removing And Installing, Standard Seat/Sport Seat/Super Sport Seat: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Follow the additional safety precautions when working with the side airbag. Refer to SIDE AIRBAG ADDITIONAL SAFETY PRECAUTIONS .
Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING .

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Fasten the front seat on the Engine/Transmission Holder - Seat Repair Fixture VAS 6136. Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .

-- Remove the backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .

Standard Seat/Sport Seat:

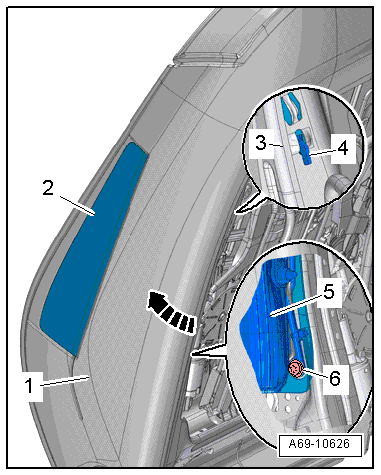

Fig 1: Pulling Backrest Cover -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the seat cover around the side airbag on the backrest until the bolt -6- for the side airbag is accessible. Refer to BACKREST COVER AND UPHOLSTERY, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .

-- Carefully pull backrest cover -arrow- as far forward as possible with backrest cushion -1- in the area of the side airbag.

-- Remove the bolt -6-.

-- Disengage the side airbag -5- from the backrest frame -3- using the hook -4-.

-- Disengage the side airbag and cushion protection -2- from the backrest cushion and pull it toward the rear. While doing this, hold the side airbag wiring harness.

Super Sport Seat:

Fig 2: Disengaging Side Airbag -3- From Backrest Frame With Hook -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the upholstery on the backrest near the side airbag (refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, SUPER SPORT SEAT ) until the bolt -2- for the side airbag is accessible.

-- Carefully pull backrest cover as far forward as possible with backrest cushion -1- in the area of the side airbag.

-- Remove the bolt -2-.

-- Disengage the side airbag -3- from the backrest frame with the hook -arrow-.

-- Disengage the side airbag from the cushion protector and pull it to the rear. Guide the side airbag wiring harness after it.
