Seat Position Sensor, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Fasten the front seat on the Engine/Transmission Holder - Seat Repair Fixture VAS 6136. Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the bolt -3-.

Fig 1: Identifying Front Passenger Seat Position Sensor, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the hook -arrow- of the seat position sensor -2- from the seat pan lower frame -1-.

Driver Seat:

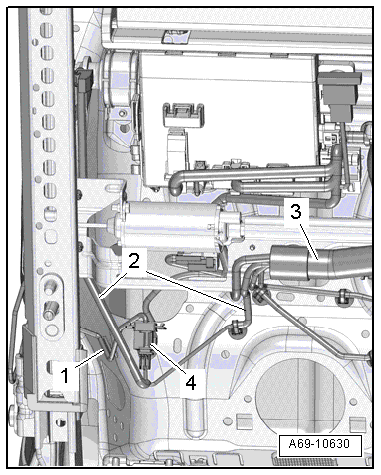

Fig 2: Removing Electrical Wire With 10-Pin Belt Latch Connector

Courtesy of AUDI OF AMERICA, LLC

-- Open corrugated tube -3- and remove electrical wire with 10-pin belt latch connector:

For the connector station harness connectors, refer to AIRBAG ADAPTER, CONNECTING AND DISCONNECTING => Connector Assignment .
For modular wiring with corrugated tube on front seat, refer to FRONT SEAT WIRE ROUTING .

-- Open the cable tie or clips -2- as far as the connector.

-- Disconnect the connector -4-.

1 - Wire to the seat belt latch

2 - Wire for the 10-pin connector (black) and Driver Seat Position Sensor -G553-

NOTE:

The connector -1- together with the wire and wire clip remain on the upper seat frame.

-- Remove the seat position sensor together with the electrical wires from the seat pan lower frame.

Front Passenger Seat:

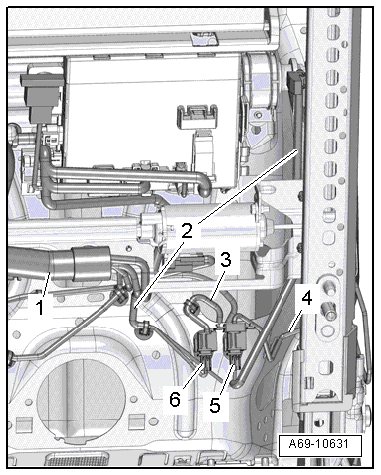

Fig 3: Removing Electrical Wire With 10-Pin For Seat Belt Latch

Courtesy of AUDI OF AMERICA, LLC

-- Open the corrugated tube -1- and remove the wire with the 10-pin connector for the seat belt latch:

For the connector station harness connectors, refer to AIRBAG ADAPTER, CONNECTING AND DISCONNECTING => Connector Assignment .
For modular wiring with corrugated tube on front seat, refer to FRONT SEAT WIRE ROUTING .

-- Open the cable tie or clips -2- as far as the connectors.

-- Disconnect the connectors -5- and -6-.

2 - Wire for the 10-pin connector (black) and Front Passenger Seat Position Sensor -G554-

3 - Wire to Front Passenger Seat Occupant Sensor -G128-

4 - Wire to the seat belt latch

NOTE:

The connectors and wires -3- and -4- and clips remain on the upper seat frame.

-- Remove the seat position sensor together with the electrical wires from the seat pan lower frame.
