Rear Seat Belt Latch, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

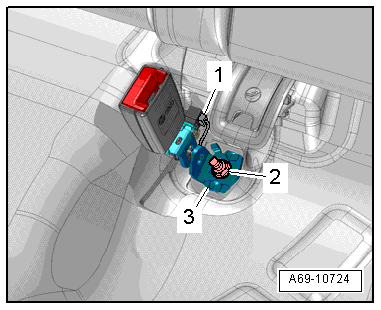

Fig 1: Identifying Rear Seat Belt Latch, Removing And Installing

GWWA69-10724

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bench seat. Refer to REAR BENCH SEAT, REMOVING AND INSTALLING .

Left Seat Belt Latch, 2-Person Rear Seat:

-- Equipment levels with seat belt switch: Disconnect the connector -1- for the seat belt switch.

-- Remove the nut -2-.

-- Remove the seat belt latch -3-.

Left Seat Belt Latch, 3-Person Rear Seat:

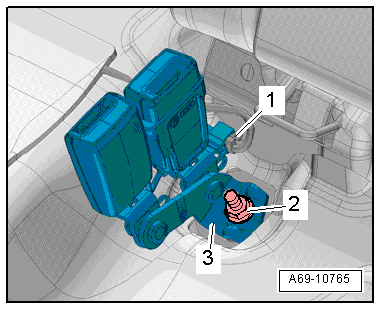

Fig 2: Rear Seat Belt Latch, Removing And Installing

GWWA69-10765

Courtesy of AUDI OF AMERICA, LLC

-- Equipment levels with seat belt switch: Disconnect the connector -1- for the seat belt switch.

-- Remove the nut -2-.

-- Remove the seat belt latch -3-.

Right Seat Belt Latch (With Center Rear Belt End Fitting, 3-Person Rear Seat):

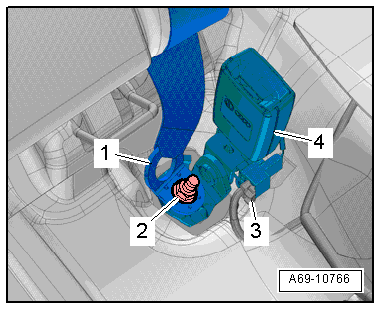

Fig 3: Rear Seat Belt Latch, Removing And Installing

GWWA69-10766

Courtesy of AUDI OF AMERICA, LLC

-- Equipment levels with seat belt switch: Disconnect the seat belt switch connector -3-.

-- Remove the nut -2-.

-- 3-person rear seat: Remove the center rear belt end fitting -1-.

-- Remove the seat belt latch -4-.
