Outer Rear Seat Belt Guide, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the side cushion. Refer to SIDE CUSHION, REMOVING AND INSTALLING .
-- Remove the luggage compartment side trim. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
CAUTION:

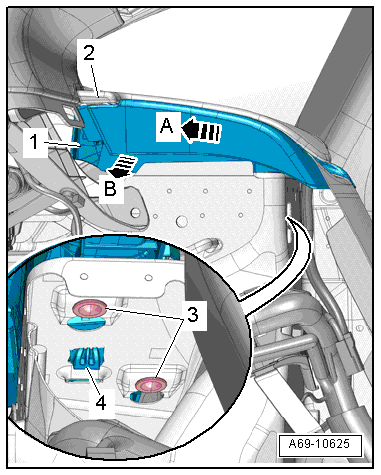

- Do not rotate bolts -3- under any circumstances when removing and installing belt guide -1-. They are set by the manufacturer.
- Replace the entire belt guide if damaged.
-- Push the belt guide retaining hook -4- upward and hold it there.
-- Lift the C-pillar trim -2- slightly and push the seat belt guide toward the rear -arrow A- until the bolt heads -3- can be disengaged from the bracket on the body.
-- Remove the seat belt guide -1- toward the inside of the vehicle -arrow B-.
-- Right rear outer seat belt guide: Disconnect the connector for the Rear Parking Aid Warning Buzzer -H15-.
-- Thread out the belt and remove the belt guide.
