Front Three-Point Seat Belt, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING .

-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the front belt end fitting. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .

-- Remove the upper trim from the B-pillar and guide the seat belt out. Refer to UPPER B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the lower B-pillar trim panel. Refer to LOWER B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the B-pillar air guide. Refer to B-PILLAR AIR GUIDE, REMOVING AND INSTALLING .

WARNING:

Before handling belt tensioner units (for example, disconnecting electrical connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

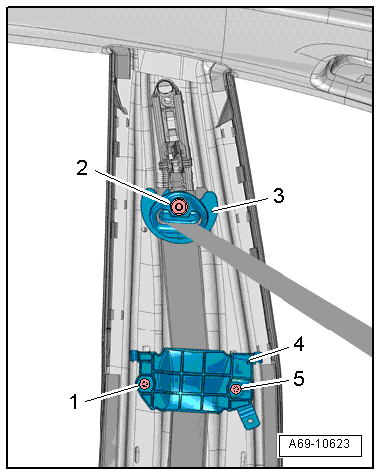

-- Remove the screws -1-, -5- and remove the front seat belt guide -4-.

Fig 1: Removing Screws -1-, -5- And Remove Front Seat Belt Guide -4-

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolt -2- for the seat belt pulley -3-.

Vehicles without an Electric Seat Belt Tensioner:

Fig 2: Removing Bolt -4- And Automatic Belt Retractor -1- From Mount

Courtesy of AUDI OF AMERICA, LLC

-- Unlock the connector lock with a small screwdriver -arrow- and disconnect the connectors from the seat belt force limiter -2- and from seat belt igniter 1 -3-.

-- Disconnect and free up the wire on the belt tensioner.

-- Remove the bolt -4- and the automatic belt retractor -1- from the mount.

Vehicles with an Electric Seat Belt Tensioner:

Fig 3: Identifying Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -5- from the seat belt tensioner control module.

-- Pull the connector lock -4- out and push it down, then disconnect the connector -3- from the seat belt igniter and seat belt force limiter.

-- Remove the bolts -1- and -2- and then remove the automatic belt retractor -6- from the mount.
