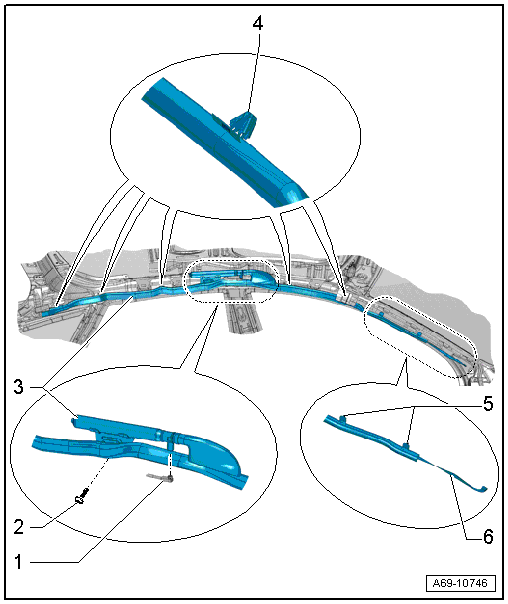

Overview - Head Curtain Airbag
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Connector
- Driver side: for Driver Head Curtain Airbag Igniter -N251-
- Front passenger side: for the Front Passenger Head Curtain Airbag Igniter -N252-
- Disconnecting and connecting, see Figure.
- Bolt
- 5 Nm
- Replace
- Head Curtain Airbag
- Driver side: with Driver Head Curtain Airbag Igniter -N251-
- Passenger side: with Front Passenger Head Curtain Airbag Igniter -N252-WARNING:
Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Removing and installing. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- Black line serves as anti-rotation protector
- Line must be visible after installation.
- Clip
- Quantity: 5
- Replace
- Clip
- Quantity: 2
- Assembly aid
- Strap
- Removing and installing. Refer to Figure.
