Rear Child Seat Anchor, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Unclipping Latch Child Seat Anchor Cover -1-

Courtesy of AUDI OF AMERICA, LLC

Lower Anchor, Bench Seat:

-- Unclip the LATCH child seat anchor cover -1- from the anchor -arrow- and remove.

-- Push the LATCH child seat anchor guide -1-, corresponding to cut-out, downward and disengage it from the anchor -2-.

Fig 2: Pushing Latch Child Seat Anchor Guide -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the LATCH child seat anchor guide forward -arrow-.

Upper Anchor, Rear Seat Backrest:

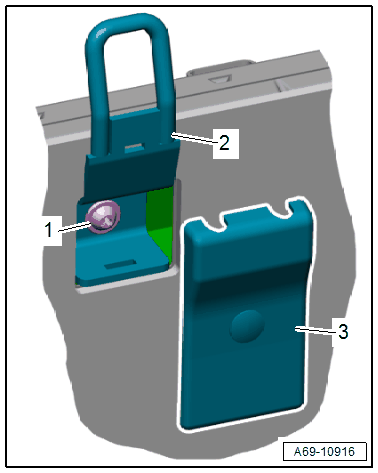

Fig 3: Removing Bolt -1- And Remove Child Seat Anchor -2-

Courtesy of AUDI OF AMERICA, LLC

-- Fold the rear seat backrest forward.

-- Unclip the cover -3- using the Trim Removal Wedge 3409 from the child seat anchor.

-- Remove the bolt -1- and remove the child seat anchor -2- from the rear seat backrest.
