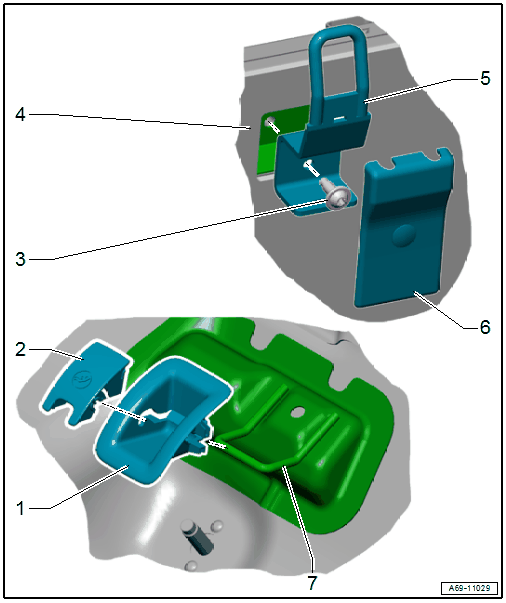

Overview - Rear Child Seat Anchors
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Guide
- For child seat anchor
- Quantity: 4
- Removing and installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- Must be secure on the anchor
- Cover
- For child seat anchor
- Quantity: 4
- Removing and installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- Must be secure on the anchor
- Bolt
- 9 Nm
- Rear Seat Backrest
- Child Seat Anchor
- Quantity: 2
- Removing and installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- Cover
- Quantity: 2
- Engage in the child seat anchor and press on it until it engages audibly
- Child Seat Anchor
- Quantity: 4
- Welded to the floor panel.
