Driver Side Rear Side Airbag Crash Sensor -G256- / Passenger Side Rear Side Airbag Crash Sensor -G257-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the rear sill trim. Refer to REAR SILL PANEL STRIP, REMOVING AND INSTALLING .
WARNING:
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

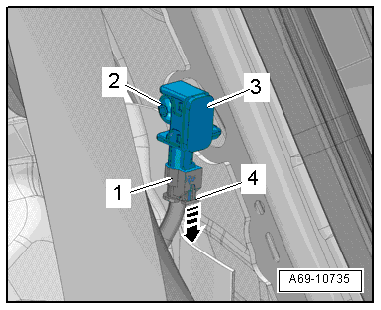

-- Pull out connector lock -4- -arrow- and press down, disconnect harness connector -1- at the crash sensor.
-- Remove the screw -2- and the side airbag crash sensors -3-.
