Driver Side Airbag Crash Sensor -G179- / Front Passenger Side Airbag Crash Sensor -G180-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Follow the safety precautions for front side airbag crash sensors (pressure sensors). Refer to FRONT SIDE AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
WARNING:
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

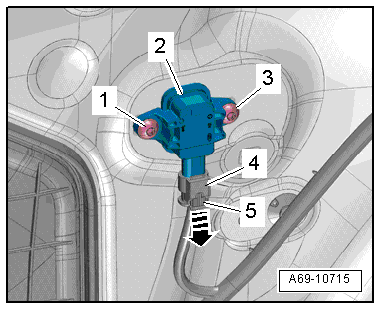

-- Pull out the connector lock -5- -arrow- and press down, then disconnect the connector -4- from the crash sensor.
-- Remove the bolts -1-, -3- and the side airbag crash sensors -2-.
