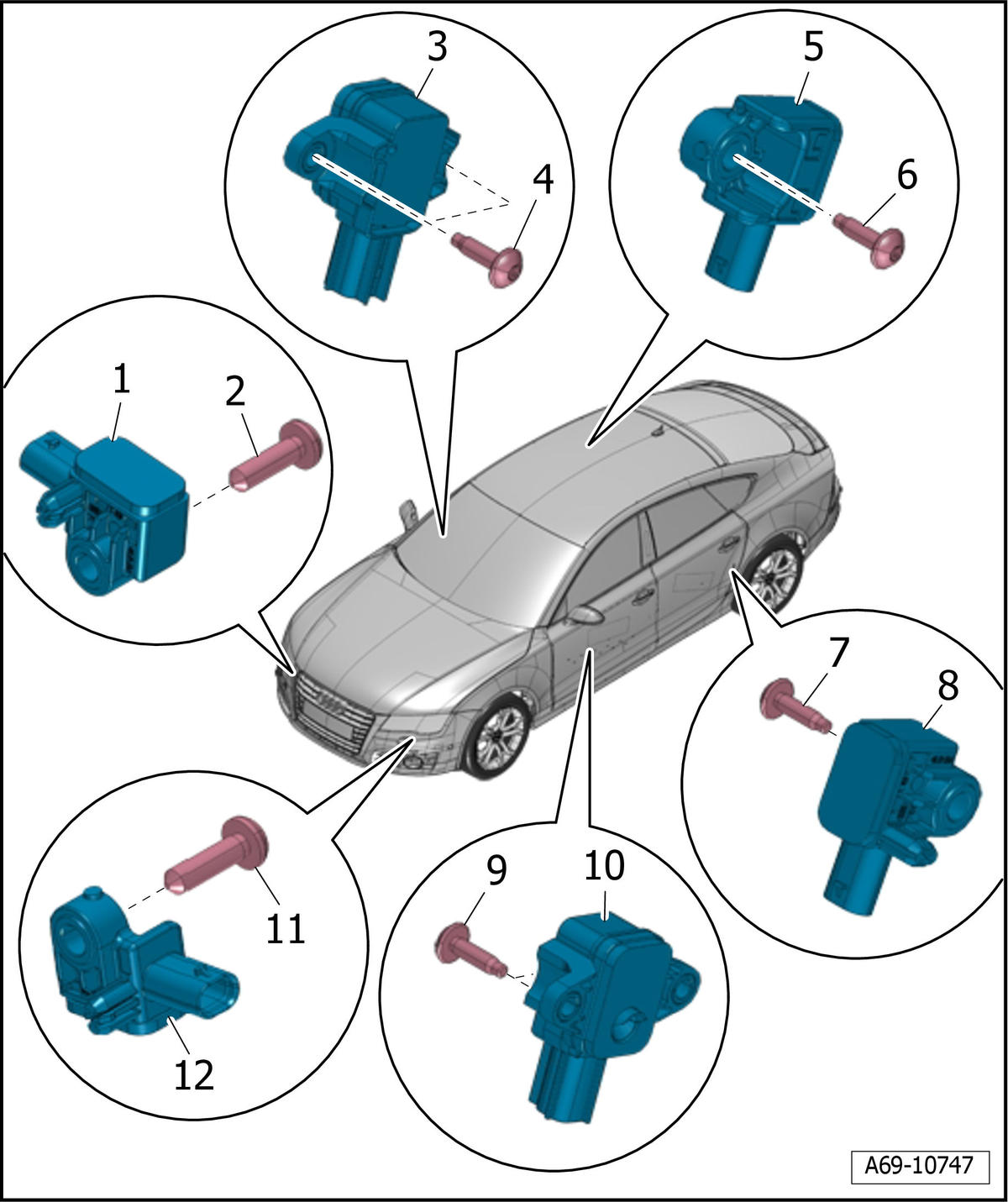

Component Location Overview - Airbag Crash Sensors
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Passenger Side Front Airbag Crash Sensor -G284-
- Installation location: on the headlamp housing bracket
- Removing and installing. Refer to FRONT AIRBAG CRASH SENSOR -G283- / -G284-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Front Passenger Side Airbag Crash Sensor -G180-
- Component location: inside the door
- Removing and installing. Refer to DRIVER SIDE AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER SIDE AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
- For the safety precautions for working with front side airbag crash sensors (pressure sensors). Refer to FRONT SIDE AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Bolt
- 5 Nm
- Quantity: 2
- Passenger Side Rear Side Airbag Crash Sensor -G257-
- Installed location: on the inside of the wheel housing behind the sill panel strip.
- Removing and installing. Refer to DRIVER SIDE REAR SIDE AIRBAG CRASH SENSOR -G256- / PASSENGER SIDE REAR SIDE AIRBAG CRASH SENSOR -G257-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Driver Side Rear Side Airbag Crash Sensor -G256-
- Installed location: on the inside of the wheel housing behind the sill panel strip.
- Removing and installing. Refer to DRIVER SIDE REAR SIDE AIRBAG CRASH SENSOR -G256- / PASSENGER SIDE REAR SIDE AIRBAG CRASH SENSOR -G257-, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Quantity: 2
- Driver Side Airbag Crash Sensor -G179-
- Component location: inside the door
- Removing and installing. Refer to DRIVER SIDE AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER SIDE AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
- For the safety precautions for working with front side airbag crash sensors (pressure sensors). Refer to FRONT SIDE AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Bolt
- 9 Nm
- Driver Front Airbag Crash Sensor -G283-
- Installation location: on the headlamp housing bracket
- Removing and installing. Refer to FRONT AIRBAG CRASH SENSOR -G283- / -G284-, REMOVING AND INSTALLING .
