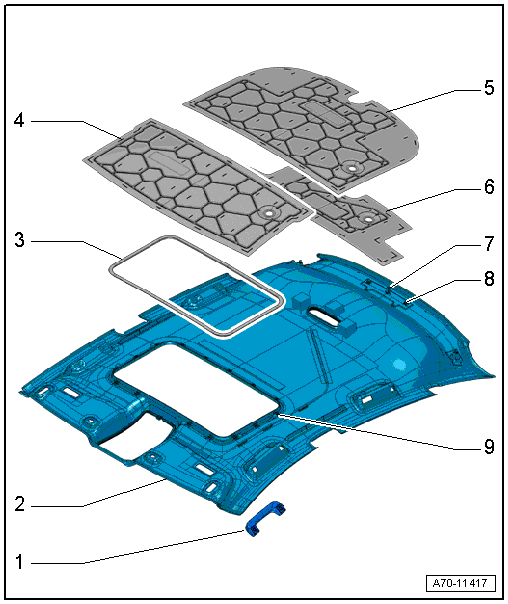

Overview - Headliner
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Roof Grab Handle
- Quantity: 4
- Removing and installing. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .
- Press the expanding caps until they lock completely.
- Headliner
For vehicles:
- without a sunroof
- with sunroof
- Removing and installing. Refer to HEADLINER, REMOVING AND INSTALLING .CAUTION:
- The headliner bends easily.
- Replace the headliner if it is bent.
- Cover Frame
- Only for version equipped with sunroof
- Front Roof Reinforcement
- For vehicles without a sunroof
- For attaching to the body, refer to ROOF REINFORCEMENT, ATTACHING TO BODY, WITHOUT SUNROOF .
- Rear Roof Reinforcement
- For vehicles without a sunroof
- For attaching to the body, refer to ROOF REINFORCEMENT, ATTACHING TO BODY, WITHOUT SUNROOF .
- Rear Roof Reinforcement
- For vehicles with sunroof
- For attaching to the body, refer to ROOF REINFORCEMENT, ATTACHING TO BODY, WITH SUNROOF .
- Centering Piece
- Clip
- Quantity: 4
- Insert in the headliner
- Remove any remaining clips in the body mounting points using the Omega Clip Tool T40280. To install, insert into the headliner.
- Replace damaged or deformed clips
- Clip
- For vehicles with sunroof
- Quantity: 15
- Release Removing .
- Insert in the headliner
- Remove clips left in the mounting points of the body and use for installation in the headliner
- Replace damaged or deformed clips
