Headliner, Removing And Installing: Removing: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .

-- Tilt backrests forward 45°.

-- Remove the upper A-pillar trim panels. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the upper B-pillar trim panels. Refer to UPPER B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the sun visors. Refer to SUN VISOR, REMOVING AND INSTALLING .

-- Remove the sun visor center support. Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING .

-- Remove the front interior lamp/reading lamp. Refer to INTERIOR LAMP/READING LAMP, WITHOUT EYEGLASS COMPARTMENT or INTERIOR LAMP/READING LAMP, WITH EYEGLASS COMPARTMENT .

-- Remove the vanity mirror lighting. Refer to ILLUMINATED VANITY MIRROR .

-- Remove the windshield. Refer to WINDSHIELD, REMOVING AND INSTALLING .

-- Remove the roof grab handle. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .

Versions Equipped with a Sunroof:

Fig 1: Sunroof & Sun Shade

Courtesy of AUDI OF AMERICA, LLC

-- Open the sunroof -1- all the way.

-- Open the sun shade -2- about ² /₃ .

-- To prevent dirtying the headliner, clean the Removal Wedge T40233.

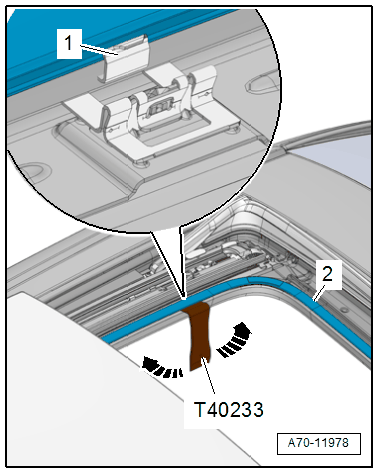

Fig 2: Releasing Cover Frames

Courtesy of AUDI OF AMERICA, LLC

-- Push the Removal Wedge T40233 between the cover frame -2- for the sunroof opening and the headliner.

-- Release the cover frames using the Removal Wedge T40233 one after each other from the brackets -1- -arrows-, as shown in the illustration.
