Trim Molding, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

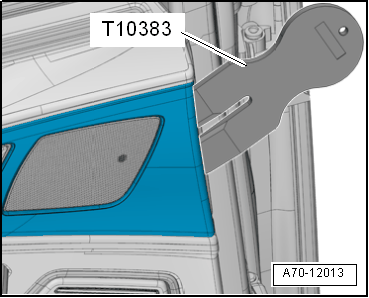

Fig 1: Identifying Wedge T10383/1

Courtesy of AUDI OF AMERICA, LLC

-- Starting at the front, pry the trim out of the door trim panel using the Wedge Set T10383.

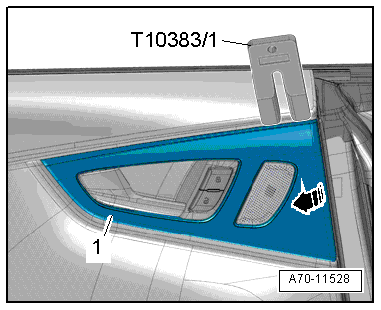

-- Carefully pry the trim -1- out of the door trim panel along the seam using the Wedge Set T10383/1 -arrow-.

Fig 2: Removing Trim

Courtesy of AUDI OF AMERICA, LLC

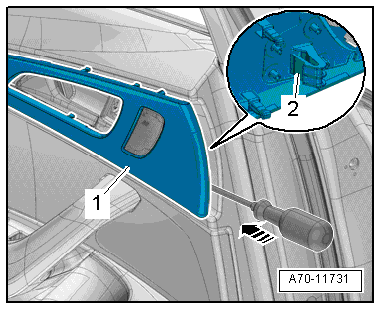

-- Lightly pry off the trim -1- and release -arrow- the inner front trim hooks for -2- on the door trim panel with a screwdriver.

Fig 3: Lifting Trim -1- Slightly And Then Unhook Front Hook -2- On Door Trim Panel Using A Screwdriver -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Slightly raise trim panel and slide forward so that the rear trim panel hooks on the inside can be released from the cut-out of the door trim.

-- Remove the trim from the door trim panel.
