Rear Ashtray, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

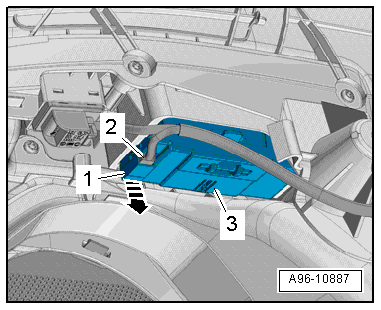

Fig 1: Identifying Rear Ashtray Illumination Bulb -L48- / -L49-

Courtesy of AUDI OF AMERICA, LLC

Vehicles with Ashtray Illumination Bulb:

-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Set the insulation mat near the ashtray illumination bulb aside.

-- Disconnect the connector -2- for the ashtray illumination bulb -1- from the ashtray -3-.

NOTE:

Ignore -arrow-.

Continuation for All Equipment Levels:

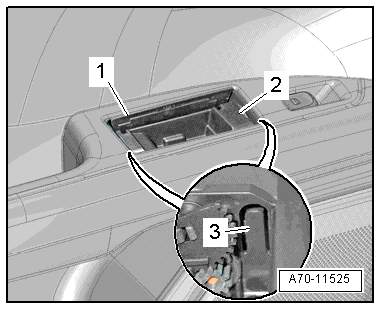

Fig 2: Removing Ashtray Insert -2-

Courtesy of AUDI OF AMERICA, LLC

-- Open the ashtray cover and remove the ashtray insert -2-.

-- Open the retainer -3- with a screwdriver and remove the ashtray -1-.
