Rear Armrest, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
-- Remove insulation mat.

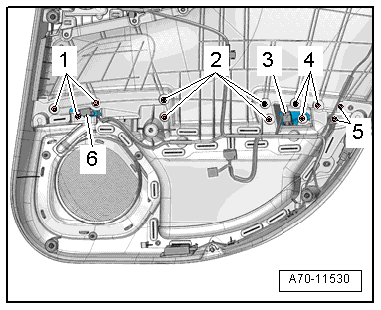

-- Disconnect the connectors -3- and -6-.
-- Remove the bolts -1, 2, 4 and 5- from the back of the door trim panel.
-- Loosen and remove the pull handle/armrest from the door trim.
