Overview - Rear Door Trim Panel

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

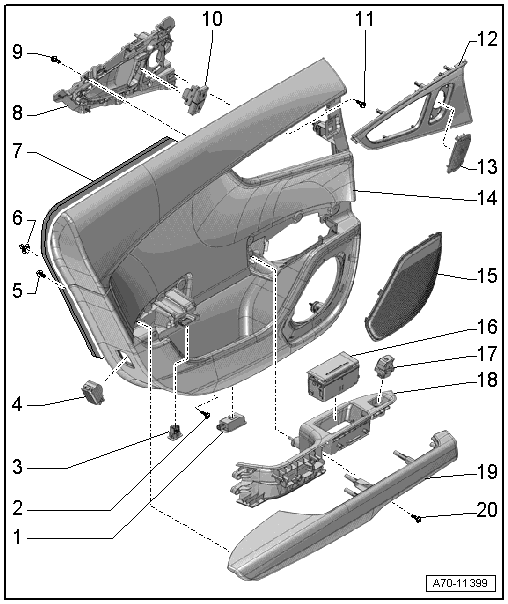

Fig 1: Exploded View Of Rear Door Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Left Rear Entry Lamp -W33-
- Right: Right Rear Entry Lamp -W34-
- Equipment levels
- Removing and installing. Refer to LEFT REAR ENTRY LAMP AND RIGHT REAR ENTRY LAMP .
Bolt
- 2.5 Nm
- For door trim
Left Rear Door Storage Compartment Illumination Bulb -L170-
- Right: Right Rear Door Storage Compartment Illumination Bulb -L171-
- Removing and installing. Refer to LEFT AND RIGHT REAR DOOR STORAGE COMPARTMENT ILLUMINATION BULB -L170- / -L171- .
Rear Reflector
- Vehicles with a Left Rear Door Warning Lamp -W37-
- Vehicles with a Right Rear Door Warning Lamp -W38-
- Door warning lamps, removing and installing. Refer to LEFT AND RIGHT REAR DOOR WARNING LAMP .
Bolt
- 1.2 Nm
- For pull handle/armrest
- Quantity: 12
Clip
- Quantity: 6
Insulation
Interior Door Mechanism
- Removing and installing. Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING .
Bolt
- 1.2 Nm
- For inside door release mechanism
- Quantity: 8
Left Rear Interior Locking Switch -E273-
- Right: Right Rear Interior Locking Switch -E274-
- Equipment levels
- Removing and installing. Refer to DRIVER/FRONT PASSENGER INTERIOR LOCKING SWITCH .
Bolt
- 2.5 Nm
- For door trim
Trim
- For inside door release mechanism
- Removing and installing. Refer to TRIM MOLDING, REMOVING AND INSTALLING .
Trim
- For high range speaker
- Removing and installing. Refer to TREBLE SPEAKER TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
Rear Door Trim Panel
- Removing and installing. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
Speaker Trim
- For bass speaker
- Removing and installing. Refer to BASS SPEAKER TRIM, REMOVING AND INSTALLING .
Rear Ashtray
- Removing and installing. Refer to REAR ASHTRAY, REMOVING AND INSTALLING .
Left Rear Power Window Button in Left Rear Door -E700-
- Right: Right Rear Power Window Button in Right Rear Door -E705-
- Equipment levels: at left with Right Rear Power Window Button in Left Rear Door -E701-
- Equipment levels: at right with Left Rear Power Window Button in Right Rear Door -E706-
- Removing and installing. Refer to LEFT AND RIGHT REAR POWER WINDOW BUTTON IN REAR DOOR .
Grip Recess
- With switch mount
- Removing and installing. Refer to BUTTON TRIM, REMOVING AND INSTALLING .
Pull Handle/Armrest
- Removing and installing. Refer to REAR ARMREST, REMOVING AND INSTALLING .
Bolt
- 2.5 Nm
- For door trim
