Bass Speaker Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

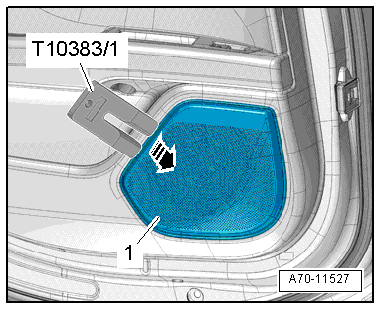

Fig 1: Removing Bass Speaker Trim
GWWA70-11527Courtesy of AUDI OF AMERICA, LLC

-- Pry out the speaker trim -1- along the door trim seam -arrow- using the Wedge T10383/1 and remove it.
