Front Sill Panel Strip, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Unclipping Lower Gap Cover -1- From A-Pillar Using A Trim Removal Wedge 3409 -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

-- Unclip the gap cover -1- from the lower A-pillar using the Trim Removal Wedge 3409 -arrow- and remove it downward from the top of the A-pillar trim panel -2-.

-- Remove the lower B-pillar trim panel. Refer to LOWER B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

Driver Side:

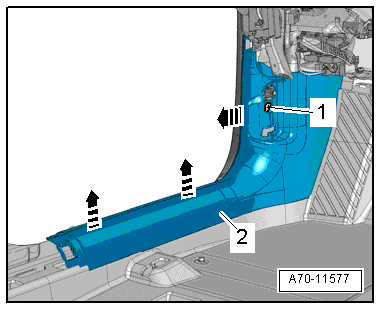

Fig 2: Removing Front Sill Panel

Courtesy of AUDI OF AMERICA, LLC

-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Remove the hood release lever. Refer to HOOD RELEASE LEVER, REMOVING AND INSTALLING .

-- Remove the screw -1- for the front sill panel strip.

Procedure for both sides of Vehicle:

-- Unclip the front sill panel strip -2- from the sill panel starting at the back using the Trim Removal Wedge 3409 and remove it toward the rear -arrows-.

-- Remove the front sill panel strip.
